View larger
Images are for illustrative purposes only. Please refer to data sheet for details

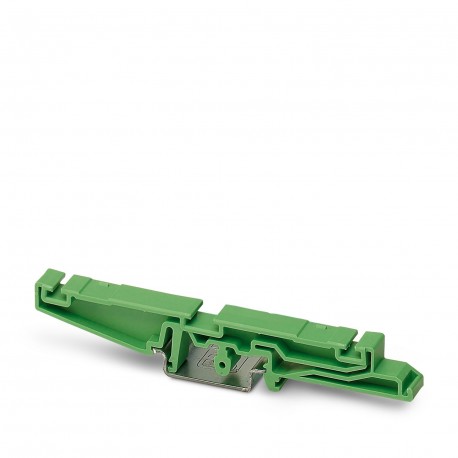

UM122-FE 2909471 PHOENIX CONTACT Electronic housing
UM122-FE
2909471
PHOENIX CONTACT
10 Pcs.
Electronic housing
Floor element UM 122 FE, for extruded profile box UM 122
UM 122 FE foot element, for UM 122 profile housing
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Base latches |
| Housing type | Press-drawn section housings |
| Housing series | UM |
| Product family | UM122 |
| Type | Base element for the DIN rail, for mounting below UM PROFILE (width: 122 mm) |
Dimensions
| Width | 14.3 mm |
| Height | 135.9 mm |
| Depth | 20.95 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polyamide |
| Surface characteristics | untreated |
Mounting
| Mounting type | DIN rail mounting |
