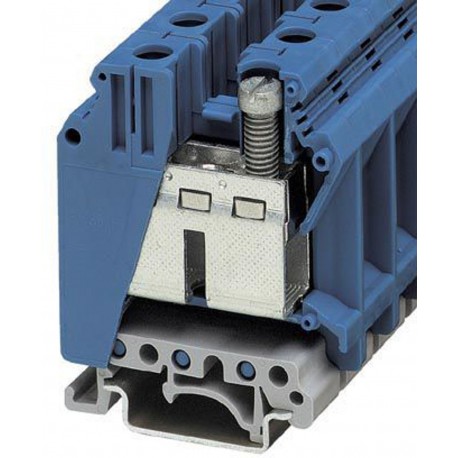

PHOENIX CONTACT UK 35 BU UK 35 BU 3008025 PHOENIX CONTACT Feed-through terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UK 35 BU 3008025 PHOENIX CONTACT Feed-through terminal block

UK 35 BU

3008025

PHOENIX CONTACT

50 Pcs.

Feed-through terminal block Feed-through terminal, nominal voltage: 1000 V, nominal current: 125 A, number of connections: 2, connection type: Screw connection, cross-section: 0.75 mm² - 50 mm², mounting class: NS 35/7.5, NS 35/15, NS 32, color: blue Feed-through terminal block, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 2, connection method: Screw connection, cross section: 0.75 mm2 - 50 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: blue

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeFeed-through terminal block
Number of connections2
Number of rows1
Potentials1
Data management status
Article revision11
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage8 kV
Maximum power dissipation for nominal condition4.06 W
Connection data
Number of connections per level2
Nominal cross section35 mm²
Rated cross section AWG2
Level 1 above 1 below 1
Screw threadM6
Tightening torque3.2 ... 3.7 Nm
Stripping length16 mm
Internal cylindrical gageB9
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid0.75 mm² ... 50 mm²
Cross section AWG18 ... 2 (converted acc. to IEC)
Conductor cross section flexible0.75 mm² ... 35 mm²
Conductor cross section, flexible [AWG]18 ... 2 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.75 mm² ... 35 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.75 mm² ... 35 mm²
2 conductors with same cross section, solid0.75 mm² ... 16 mm²
2 conductors with same cross section, flexible0.75 mm² ... 10 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.75 mm² ... 10 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.75 mm² ... 6 mm²
Nominal current125 A
Maximum load current150 A (with 50 mm² conductor cross section)
Nominal voltage1000 V
Ex data
Rated data (ATEX/IECEx)
Identification II 2 GD  Ex eb IIC Gb
Operating temperature range-60 °C ... 110 °C
Ex-certified accessories3008096 TP-UK 35
1205079 SZS 1,0X6,5 VDE
1201442 E/UK
List of bridgesFixed bridge / FBI 2-15 / 0201333
Fixed bridge / FBI 3-15 / 0201278
Bridge data118.5 A / 35 mm²
List of bridgesInsertion bridge / EB 2-15 K/UK 35 / 0205119
Insertion bridge / EB 10-15 / 0205135
Bridge data105.5 A / 35 mm²
List of bridgesChain bridge / KBI- 15 / 0205203
Bridge data116 A / 35 mm²
Ex temperature increase40 K (130.5 A / 35 mm²)
Rated voltage690 V
at bridging with insertion bridge690 V
for bridging with bridge690 V
Rated insulation voltage630 V
output(Permanent)
Ex level General
Rated current118.5 A
Maximum load current147 A
Contact resistance0.08 mΩ
Ex connection data General
Torque range3.2 Nm ... 3.7 Nm
Nominal cross section35 mm²
Rated cross section AWG2
Connection capacity rigid0.75 mm² ... 50 mm²
Connection capacity AWG18 ... 1/0
Connection capacity flexible0.75 mm² ... 35 mm²
Connection capacity AWG18 ... 2
2 conductors with same cross section, solid0.75 mm² ... 16 mm²
2 conductors with the same cross-section AWG rigid18 ... 6
2 conductors with same cross section, stranded0.75 mm² ... 10 mm²
2 conductors with the same cross-section AWG flexible18 ... 8
Dimensions
Width15.1 mm
Height50 mm
Depth on NS 3267 mm
Depth on NS 35/7,562 mm
Depth on NS 35/1569.5 mm
Material specifications
Colorblue (RAL 5015)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Mechanical properties
Mechanical data
Open side panelNo
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 60947-7-1
Mounting
Mounting typeNS 35/7,5
NS 35/15
NS 32

ETIM for 3008025 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.75 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.75 mm²
Connectable conductor cross section solid-core (EF007337) 0.75 mm²
Connectable conductor cross section multi-wired (EF007343) 0.75 mm²
Rated current In (EF008250) 125 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 15.1 mm
Height (EF000040) 50 mm
Depth (EF000049) 62 mm
Explosion-tested version 'Ex e' (EF008498) Yes
Closing plate required (EF002525) No
Colour (EF000007) Blue
Internally connected stages (EF002661) Yes
