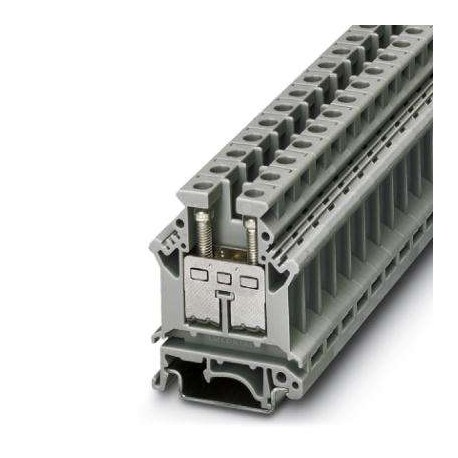

PHOENIX CONTACT UK 16 UK 16 3006014 PHOENIX CONTACT Feed-through terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UK 16 3006014 PHOENIX CONTACT Feed-through terminal block

UK 16

3006014

PHOENIX CONTACT

50 Pcs.

Feed-through terminal block Feed-through terminal, nominal voltage: 800 V, nominal current: 76 A, number of connections: 2, connection type: Screw connection, cross-section: 0.5 mm² - 16 mm², installation type: NS 35/7.5, NS 35/15, NS 32, color: gray

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3006014
Packing unit50 pc
GTIN4017918091286
Weight per Piece (excluding packing)20.320 g
Custom tariff number85369010
Country of originDE (Germany)

General

Number of levels1
Number of connections2
Potentials1
Colorgray
Insulating materialPA
Flammability rating according to UL 94V2
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Nominal current IN76 A
Nominal voltage UN800 V
Open side panelYes
Shock protection test specificationIEC 60529:2001-02
Back of the hand protectionguaranteed
Result of surge voltage testTest passed
Surge voltage test setpoint9.8 kV
Result of power-frequency withstand voltage testTest passed
Power frequency withstand voltage setpoint2 kV
Result of the test for mechanical stability of terminal points (5 x conductor connection)Test passed
Result of bending testTest passed
Bending test rotation speed10 rpm
Bending test turns135
Bending test conductor cross section/weight0.5 mm² / 0.3 kg
10 mm² / 2 kg
16 mm² / 2.9 kg
Tensile test resultTest passed
Conductor cross section tensile test0.5 mm²
Tractive force setpoint20 N
Conductor cross section tensile test10 mm²
Tractive force setpoint90 N
Conductor cross section tensile test16 mm²
Tractive force setpoint100 N
Result of tight fit on supportTest passed
Tight fit on carrierNS 32/NS 35
Setpoint5 N
Result of voltage-drop testTest passed
Requirements, voltage drop≤ 3.2 mV
Result of temperature-rise testTest passed
Short circuit stability resultTest passed
Conductor cross section short circuit testing10 mm²
Short-time current1.2 kA
Conductor cross section short circuit testing16 mm²
Short-time current1.92 kA
Result of thermal testTest passed
Proof of thermal characteristics (needle flame) effective duration30 s
Relative insulation material temperature index (Elec., UL 746 B)125 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C

Dimensions

Width10.2 mm
End cover width1.5 mm
Length42.5 mm
Height NS 35/7,554 mm
Height NS 35/1561.5 mm
Height NS 3259 mm

Connection data

Connection methodScrew connection
Connection in acc. with standardIEC / EN
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.6
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.10 mm²
Min. AWG conductor cross section, flexible20
Max. AWG conductor cross section, flexible8
Conductor cross section flexible, with ferrule without plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.10 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.10 mm²
2 conductors with same cross section, solid min.0.5 mm²
2 conductors with same cross section, solid max.4 mm²
2 conductors with same cross section, stranded min.0.5 mm²
2 conductors with same cross section, stranded max.4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.6 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.4 mm²
Connection in acc. with standardUL
Conductor cross section AWG min.24
Conductor cross section AWG max.6
Stripping length11 mm
Internal cylindrical gageB6
Screw threadM4
Tightening torque, min1.5 Nm
Tightening torque max1.8 Nm

Standards and Regulations

Connection in acc. with standardCSA
IEC / EN
Flammability rating according to UL 94V2

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3006014 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.5 mm²
Connectable conductor cross section solid-core (EF007337) 0.5 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Rated current In (EF008250) 76 A
Rated voltage (EF000228) 800 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V2
Width (EF000008) 10.2 mm
Height (EF000040) 42.5 mm
Depth (EF000049) 54 mm
Closing plate required (EF002525) Yes
Colour (EF000007) Grey
Internally connected stages (EF002661) Yes
