View larger
Images are for illustrative purposes only. Please refer to data sheet for details

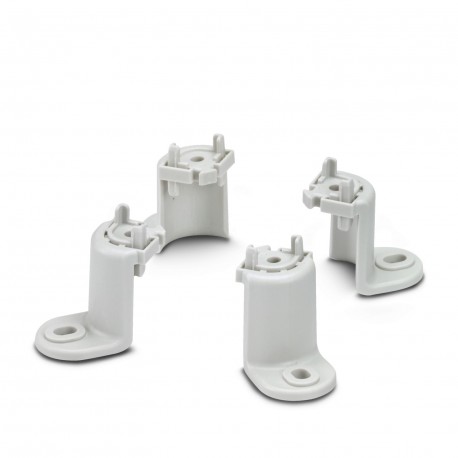

UCS WM-B 7035 2203718 PHOENIX CONTACT Adapter for mounting the UCS housing on the wall, material: polyamide,..
UCS WM-B 7035
2203718
PHOENIX CONTACT
1 Pcs.
Adapter for mounting the UCS housing on the wall, material: polyamide, color: light gray similar to RAL 7035, used instead of UCS CC corner insert; only used in conjunction with UCS GD 9005 adhesive pad
The adapter for attaching the UCS box to the wall with polyamide material and light grey colour, similar to RAL 7035, is used in place of the UCS CC angle insert, only in combination with the UCS GD 9005 adhesive backing
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2203718 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626436593 |
| Weight per Piece (excluding packing) | 20.000 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
Measurements
| Width [ w ] | 16 mm |
|---|---|
| Height [ h ] | 25.95 mm |
| Depth [ d ] | 21 mm |
| Diameter mounting hole | 4 mm |
Material specifications
| Color (RAL) | light gray (7035) |
|---|---|
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Housing material | PA |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 100 °C (depending on power dissipation) |
Classifications
eCl@ss
| eCl@ss 5.1 | 27180506 |
|---|---|
| eCl@ss 6.0 | 27180800 |
| eCl@ss 7.0 | 27182702 |
| eCl@ss 8.0 | 27182702 |
| eCl@ss 9.0 | 27182702 |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
