View larger
Images are for illustrative purposes only. Please refer to data sheet for details

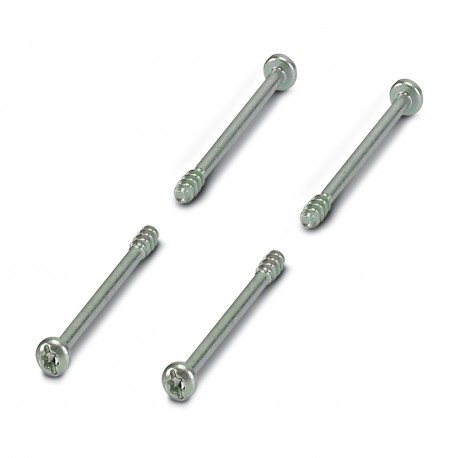

UCS SF 3,5X40 2203403 PHOENIX CONTACT Screw set
UCS SF 3,5X40
2203403
PHOENIX CONTACT
1 Pcs.
Screw set
Screw set for mounting a UCS housing at the 67 mm construction height
Screw set for creating a UCS housing of height 67 mm
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Assembly note | Refer to the data sheet for the range in the download area. |
| Recommendation | Further information and detailed dimensions are available in the download area. |
Product properties
| Product type | Mounting material |
| Housing type | Universal housings |
| Housing series | UCS |
| Type | Screw set, high |
| Ventilation openings present | no |
| Data management status | |
| Article revision | 00 |
Material specifications
| Housing material | Steel |
| Surface characteristics | galvanized |
| galvanized |
Packaging specifications
| Type of packaging | PE bag |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Other |
