View larger
Images are for illustrative purposes only. Please refer to data sheet for details

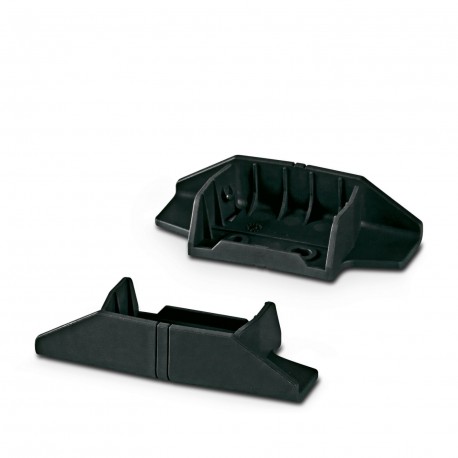

UCS PED 9005 2203393 PHOENIX CONTACT Stand for mounting the UCS housing height: 47 mm material: polyamide co..
UCS PED 9005
2203393
PHOENIX CONTACT
1 Pcs.
Stand for mounting the UCS housing; height: 47 mm; material: polyamide; color: black, similar to RAL 9005; wall mounting option is integrated, snaps into the screw holes of the housing
UCS housing stand, height: 47 mm, material: polyamide, color: black, similar to RAL 9005, integrated wall mounting option, snaps into the threaded holes of the housing
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Assembly note | Refer to the data sheet for the range in the download area. |
| General | The UCS PED... stand has drill holes that are also suitable for wall mounting. Recommended screws for wall mounting: S5 dowel, screw ø 4.0 mm. |
Product properties
| Product type | Mounting material |
| Housing type | Universal housings |
| Housing series | UCS |
| Ventilation openings present | no |
| Data management status | |
| Article revision | 02 |
Dimensions
| Width | 90 mm |
| Height | 37.5 mm |
| Depth | 19.2 mm |
| Diameter mounting hole | 4 mm |
Material specifications
| Color (Housing) | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Insulating material | PA |
| Housing material | Polyamide |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Max. IP code to attain | IP40 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
Mounting
| Mounting type | Snap in |
| Mounting position | Wall mounting |
Packaging specifications
| Type of packaging | PE bag |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9005 |
