View larger
Images are for illustrative purposes only. Please refer to data sheet for details

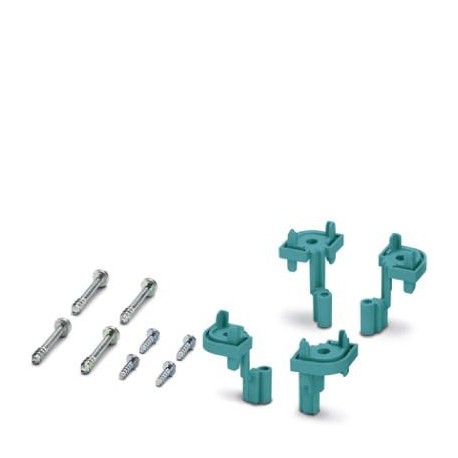

UCS CCD 5018 2203404 PHOENIX CONTACT Corner inlay
UCS CCD 5018
2203404
PHOENIX CONTACT
1 Pcs.
Corner inlay
Angular inserts for UCS housings with integrated threaded mandrel; polyamide material; turquoise blue color similar to RAL 5018
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2203404 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626403625 |
| Weight per Piece (excluding packing) | 14.000 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Material specifications
| Color (RAL) | turquoise blue (5018) |
|---|---|
| Insulating material | PA |
| CTI according to IEC 60112 | 0 |
| Flammability rating according to UL 94 | V0 |
| Housing material | PA |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 100 °C (depending on power dissipation) |
PCB data
| Number of PCB holders | 1 |
|---|---|
| Note on PCB holders | This product is prepared for a printed-circuit board. Additional printed-circuit boards can be mounted using adhesive pads (accessories). |
| PCB thickness | 0.8 mm ... 3 mm |
| Type of PCB mount | Bolt mounting |
Note on mounting
| Tightening torque / rotational speed | Screw connection between housing halves: 1.2 Nm-1.4 Nm / 500 rpm-1000 rpm |
|---|---|
| Mounting of PCB on corner feeder: 0.4 Nm-0.5 Nm / 500 rpm-1000 rpm | |
| Drive form screw head | Mounting the PCB: Slotted Torx®(T7) |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Other |
| RAL-number (EF000116) | 5018 |
