View larger
Images are for illustrative purposes only. Please refer to data sheet for details

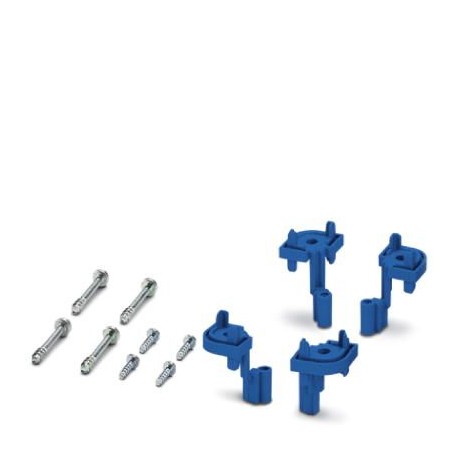

UCS CCD 5015 1056065 PHOENIX CONTACT Corner inlay for UCS housings with integrated screw boss material: poly..
UCS CCD 5015
1056065
PHOENIX CONTACT
1 Pcs.
Corner inlay for UCS housings with integrated screw boss; material: polyamide; color: sky blue, similar to RAL 5015
Angular inserts for UCS housings with integrated threaded mandrel; Material: Polyamide; Color: Sky Blue, similar to RAL 5015
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Item properties
| Type | UCS CCD 5015 |
|---|---|
| Order No. | 1056065 |
| Housing type | Universal housings |
| Type | Including flat screws and screws for PCB mounting |
Material specifications
| Color (RAL) | sky blue (5015) |
|---|---|
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Housing material | PA |
PCB data
| Note on PCB holders | This product is prepared for a printed-circuit board. Additional printed-circuit boards can be mounted using adhesive pads (accessories). |
|---|---|
| PCB thickness | 0.8 mm ... 3 mm |
| Type of PCB mount | Bolt mounting |
Classifications
eCl@ss
| eCl@ss 5.1 | 27180506 |
|---|---|
| eCl@ss 6.0 | 27180800 |
| eCl@ss 7.0 | 27182702 |
| eCl@ss 8.0 | 27182702 |
| eCl@ss 9.0 | 27182702 |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Blue |
| RAL-number (EF000116) | 5015 |
