View larger
Images are for illustrative purposes only. Please refer to data sheet for details

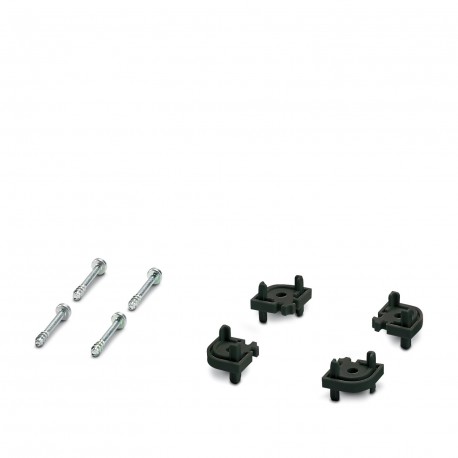

UCS CC 9005 2203396 PHOENIX CONTACT Corner inlay
UCS CC 9005
2203396
PHOENIX CONTACT
1 Pcs.
Corner inlay
Angular insert for UCS boxes; Material: Polyamide; Color: Black, similar to RAL 9005
Corner insert for UCS housing, polyamide material, black colour, similar to RAL 9005
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2203396 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626427935 |
| Weight per Piece (excluding packing) | 8.720 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Material specifications
| Color (RAL) | black (9005) |
|---|---|
| Insulating material | PA |
| CTI according to IEC 60112 | 0 |
| Flammability rating according to UL 94 | V0 |
| Housing material | PA |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 100 °C (depending on power dissipation) |
Note on mounting
| Tightening torque / rotational speed | Screw connection between housing halves: 1.2 Nm-1.4 Nm / 500 rpm-1000 rpm |
|---|
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9005 |
