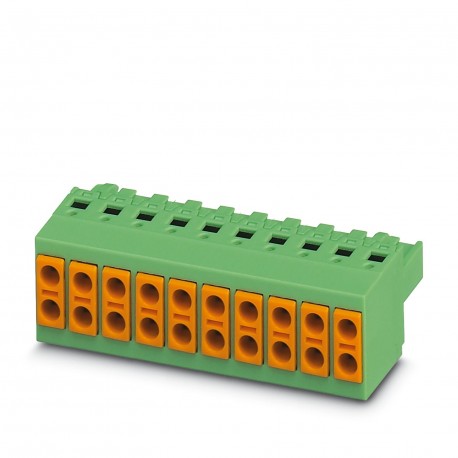

PHOENIX CONTACT TVFKC 1,5/ 4-ST 35 2CPBD:1.4SO TVFKC 1,5/ 4-ST 35 2CPBD:1.4SO 1085847 PHOENIX CONTACT Connector for printed circuit board, voltage and sizi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TVFKC 1,5/ 4-ST 35 2CPBD:1.4SO 1085847 PHOENIX CONTACT Connector for printed circuit board, voltage and sizi..

TVFKC 1,5/ 4-ST 35 2CPBD:1.4SO

1085847

PHOENIX CONTACT

50 Pcs.

Connector for printed circuit board, voltage and sizing (III/2): 320 V, number of poles: 4, pitch: 5 mm, connection type: spring clamp push-in, color: light grey, surface contacts: Tin Connector for printed circuit board, nominal section: 1.5 mm², color: bright gray, nominal current: 10 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of rows: 1, number of poles: 4, family of articles: TVFKC 1.5/.. -ST, pitch: 5mm, connection type: Push-in spring connection, conductor/printed circuit board connection direction: 0°, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: without, fixing type: without, packaging type: boxed Conductive plate connector, nominal cross-section: 1.5 mm2, colour: light grey, nominal current: 10 A, reference voltage (III/2): 320 V, contact surface: Sn, contact type: Female connector, number of rows: 1, number of poles: 4, item range: TVFKC 1.5/.. -ST, pitch: 5 mm, connection type: Push-in spring connection, conductor/PCB plugging direction: 0°, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2.5, locking: without, fastening type: without, packaging type: packed in a carton

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product TypeConductive Plate Connector
Product rangeTVFKC 1,5/.. -ST
Product LineCOMBICON Connectors M
Number of poles4
Steps5 mm
Number of rows1
Data Management Status
Revision of the article00
Rated Current IN10 A
Rated voltage UN320 V
Contact resistance1.3 mΩ
Reference voltage (III/3)250 V
Rated Shock Resistance Voltage (III/3)4 kV
Rated Voltage (III/2)320 V
Rated Shock Withstand Voltage (III/2)4 kV
Reference voltage (II/2)630 V
Rated Shock Withstand Voltage (II/2)4 kV
Connection technology
TypeStandard
Connector SystemCOMBICON MSTB 2,5
Nominal cross-section1.5 mm²
Contact TypeFemale connector
Locking
Lock Modewithout
Mounting Flangewithout
Conductor connection
Connection typePush-in spring connection
Conductor/PCB Plugging Direction0 °
Rigid conductor cross-section0.2 mm² ... 1.5 mm²
Soft conductor section0.2 mm² ... 1.5 mm²
Conductive section. AWG24 ... 16
Soft conductor section with end cap, without plastic bushing0.25 mm² ... 1.5 mm² (only in connection with CRIMPFOX 6)
Soft conductor section with plastic end cap and socket0.25 mm² ... 1.5 mm² (only in connection with CRIMPFOX 6)
Template a x b / diameter2.4 mm x 1.5 mm / 1.9 mm
Stripping length8 mm
Data for Bits Without Insulating Collar
Recommended crimping tool1212034 CRIMPFOX 6
Data for Bits with Insulating Collar
Recommended crimping tool1212034 CRIMPFOX 6
Material indication - contact
NoteWEEE/RoHS compliant, trichite-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface qualityTinned by hot dipping
Metal surface connection point (top layer)Tin (4 - 8 μm Sn)
Metal surface, contact area (top layer)Tin (4 - 8 μm Sn)
Material indication - housing
Colors (Cases)Light Grey (7035)
Insulating materialPA
Insulation GroupI
CRI according to IEC 60112600
Flammability class according to UL 94V0
GWFI glow wire flammability class according to EN 60695-2-12850
GWIT glow wire ignition temperature according to EN 60695-2-13775
Ball pressure test temperature according to EN 60695-10-2125 °C
Material Indications - Actuation Element
Colour (Actuation Element)Orange (2003)
Insulating materialPA
Insulation GroupI
CRI according to IEC 60112600
Flammability class according to UL 94V0
Dimensioned drawing
Steps5 mm
Width [w]20 mm
Height [h]15 mm
Length [l]23.3 mm
Operating InformationMINICONNEC connectors are connectors without switching power (COC) in accordance with DIN EN 61984. When used correctly, they should not be plugged in or disconnected if they are under load or powered on.
Conductor connection
Control SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultSuccessful test
Investigation of damage and loosening of conductors
Control SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultSuccessful test
Repeated logins and disconnections
Control SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultSuccessful test
Traction Control
Control SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Conductor cross-section/conductor type/tractive force, nominal/actual0.2 mm² / rigid / > 10 N
0.2 mm² / soft / > 10 N
1.5 mm² / rigid / > 40 N
1.5 mm² / soft / > 40 N
Plug-in and Shrink Forces
Control SpecificationDIN EN 60512-13-2:2006-11
ResultSuccessful test
Number of cycles25
Approx. mating force per pole8 N
Removal force per pole approx.6 N
Resistance of inscriptions
Control SpecificationDIN EN 60068-2-70:1996-07
ResultSuccessful test
Polarization and keying
Control SpecificationDIN EN 60512-13-5:2006-11
ResultSuccessful test
Visual inspection
Control SpecificationDIN EN 60512-1-1:2003-01
ResultSuccessful test
Dimension control
Control SpecificationDIN EN 60512-1-2:2003-01
ResultSuccessful test
Vibration Resistance Test
Control SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
Frequency10 - 150 - 10 Hz
Scan Speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Inspection time per axis2.5 hrs
Sense of controlX, Y, and Z Axes
Lifetime test
Control SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Shock Resistance Voltage at Sea Level4.8 kV
Passage resistance R11.3 mΩ
Passage resistance R21.4 mΩ
Number of mating cycles25
Insulation resistance of neighboring poles> 5 MΩ
Climate control
Control SpecificationDIN EN ISO 6988:1997-03
Corrosion susceptibility0.2 dm3SO2about 300 dm3/40 °C/1 cycle
Heat sensitivity105 °C/168 h
Alternating current withstand voltage2.21 kV
Environmental conditions
Ambient Temperature (Operating)-40 °C ... 100 °C (depending on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
Thermal Testing Test Group C
Control SpecificationDIN EN 60512-5-1:2003-01
Number of poles tested10
Insulation resistance
Control SpecificationDIN EN 60512-3-1:2003-01
Insulation resistance of neighboring poles> 5 MΩ
Air Distances and Trailing Lines
Control SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulation GroupI
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))SIC 600
Rated Insulation Voltage (III/3)250 V
Rated Shock Resistance Voltage (III/3)4 kV
minimum value of distance in air - non-homogeneous field (III/3)3 mm
minimum creepage value (III/3)3.2 mm
Rated Insulation Voltage (III/2)320 V
Rated Shock Voltage (III/2)4 kV
minimum value of distance in air - non-homogeneous field (III/2)3 mm
minimum creepage value (III/2)3 mm
Rated Insulation Voltage (II/2)630 V
Rated Shock Withstand Voltage (II/2)4 kV
minimum value of distance in air - non-homogeneous field (II/2)3 mm
minimum creepage value (II/2)3.2 mm
Type of packagingpacked in a carton

ETIM for 1085847 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 10 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
