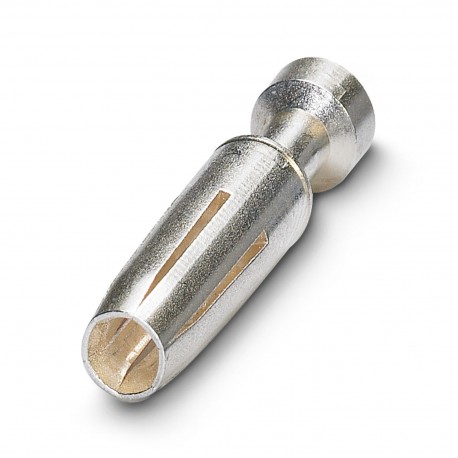

CK2,5-ED-4,00BU AG 1663705 PHOENIX CONTACT Crimp contact
CK2,5-ED-4,00BU AG
1663705
PHOENIX CONTACT
100 Pcs.
Crimp contact
Crimped contact, contact diameter: 2.5 mm, machined, Female, contact material: Copper alloy, contact surface: silver, connection cross-section: 4 mm² ... 4 mm², 12 AWG
Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 4 mm2 ... 4 mm2, AWG 12
Connectors > Contact for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | for HC-M-06..., HC-M-HV-, HC-M-08-, HC-M-20-, HC-A..., HC-B..., HC-BB..., HC-BBB..., and HC-HV contact carriers |
Mounting
| Assembly note | The quality of a crimp connection is determined by DIN EN 60352-2. |
Product properties
| Product type | Crimp contact |
| Series | HC-M-06 |
| HC-M-HV | |
| HC-M-08 | |
| HC-A | |
| HC-BB | |
| HC-B | |
| HC-HV | |
| HC-M-20 | |
| HC-K | |
| HC-BBB | |
| HC-Q | |
| HC-COM | |
| Type | Individual female contact |
| Contact material type | turned |
| Data management status | |
| Article revision | 07 |
Connection data
| Connection method | Crimp connection |
| Contact connection type | Socket |
| Connection technology | Crimp connection |
| Conductor cross section | 4 mm² ... 4 mm² |
| Connection cross section AWG | 12 |
| Stripping length of the individual wire | 7.5 mm (9.5 mm at HC-M-HV...) |
| Conductor cross section flexible | 4 mm² ... 4 mm² |
Material specifications
| Contact material | Copper alloy |
| Contact surface material | silver-plated |
Dimensions
| Mechanical characteristics | |
| Contact diameter | 2.5 mm |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
