View larger
Images are for illustrative purposes only. Please refer to data sheet for details

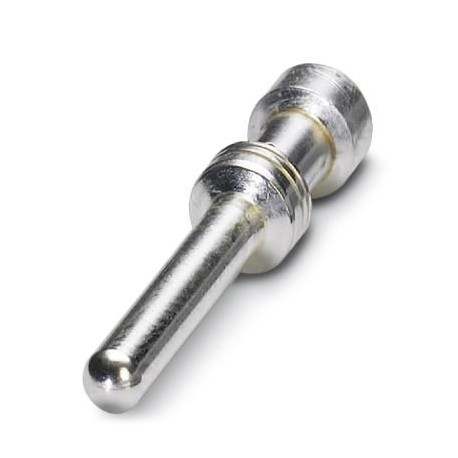

CK2,5-ED-0,50ST AG 1663572 PHOENIX CONTACT Crimp contact
CK2,5-ED-0,50ST AG
1663572
PHOENIX CONTACT
100 Pcs.
Crimp contact
Crimp contact, contact diameter: 2.5 mm, machined, Male, contact material: Copper alloy, contact surface: silver, connection cross-section: 0.5 mm² ... 0.5 mm², AWG 20
Connectors > Contact for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1663572 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Catalog page | Page 505 (C-2-2017) |
| GTIN | 4017918123383 |
| Weight per Piece (excluding packing) | 1.340 g |
| Custom tariff number | 74152900 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Conductor cross section | 0.5 mm² ... 0.5 mm² |
|---|---|
| Connection cross section AWG | 20 |
| Stripping length of the individual wire | 7.5 mm (9.5 mm at HC-M-HV...) |
| Contact diameter | 2.5 mm |
| Insertion/withdrawal cycles | ≥ 500 |
General
| Note | for HC-M-06..., HC-M-HV-, HC-M-08-, HC-M-20-, HC-A..., HC-B..., HC-BB..., HC-BBB..., and HC-HV contact carriers |
|---|---|
| Type | Individual male contact |
| Series | HC-M-06 |
| Connection method | Crimp connection |
| Contact type | turned |
| Connection | The quality of a crimp connection is determined by DIN EN 60352-2. |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
