View larger
Images are for illustrative purposes only. Please refer to data sheet for details

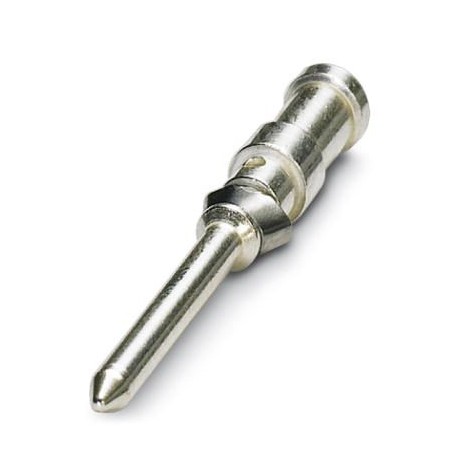

CK1,6-ED-1,00ST AG 1663365 PHOENIX CONTACT Crimp contact
CK1,6-ED-1,00ST AG
1663365
PHOENIX CONTACT
100 Pcs.
Crimp contact
Crimp contact, contact diameter: 1.6 mm, machined, Male, contact material: Copper alloy, contact surface: silver, connection cross-section: 1 mm² ... 1 mm², 18 AWG
Connectors > Contact for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1663365 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Catalog page | Page 503 (C-2-2017) |
| GTIN | 4017918123178 |
| Weight per Piece (excluding packing) | 0.640 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Conductor cross section | 0.75 mm² ... 1 mm² |
|---|---|
| Connection cross section AWG | 18 |
| Stripping length of the individual wire | 8 mm |
| Contact diameter | 1.6 mm |
| Insertion/withdrawal cycles | ≥ 500 |
General
| Note | for HC-M-12, HC-M-17, HC-M-03/04, HC-M-EMV, HC-D, HC-DD, HC-Q, and VC-D contact carriers |
|---|---|
| Type | Individual male contact |
| Series | HC-M-12 |
| Connection method | Crimp connection |
| Contact type | turned |
| Assembly instructions | At voltages of < 5 V and currents < 5 mA, gold-plated contacts are recommended. |
| Connection | The quality of a crimp connection is determined by DIN EN 60352-2. |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440204eCl@ss 8.027440204eCl@ss 9.027440204
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Ambient temperature (EF002386) | 125 °C |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.75 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.75 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.75 mm² |
| Type of electric connection (EF003961) | Crimp connection |
| Strip length (EF006824) | 8 mm |
| Diameter plug-in contact (EF007320) | 1.6 mm |
| Material contact (EF007544) | Copper |
| Material of contact surface (EF004020) | Silver |
| Min. number of insertion cycles (EF012212) | 500 |
