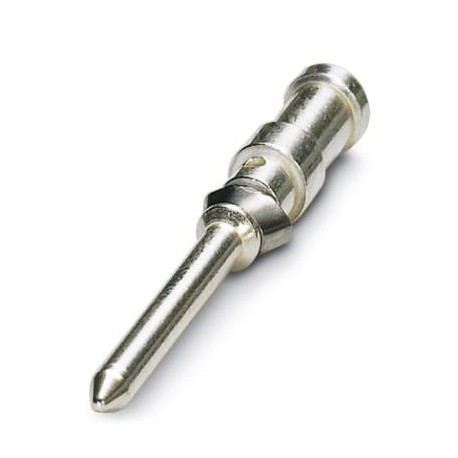

CK1,6-ED-0,37ST AG 1663336 PHOENIX CONTACT Crimp contact
CK1,6-ED-0,37ST AG
1663336
PHOENIX CONTACT
100 Pcs.
Crimp contact
Crimp contact, contact diameter: 1.6 mm, machined, Male, contact material: Copper alloy, contact surface: silver, connection cross-section: 0.14 mm² ... 0.37 mm², AWG 26 ... 22
Connectors > Contact for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1663336 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Catalog page | Page 503 (C-2-2017) |
| GTIN | 4017918123147 |
| Weight per Piece (excluding packing) | 0.680 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Conductor cross section | 0.14 mm² ... 0.37 mm² |
|---|---|
| Connection cross section AWG | 26 ... 22 |
| Stripping length of the individual wire | 8 mm |
| Contact diameter | 1.6 mm |
| Insertion/withdrawal cycles | ≥ 500 |
General
| Note | for HC-M-12, HC-M-17, HC-M-03/04, HC-M-EMV, HC-D, HC-DD, HC-Q, and VC-D contact carriers |
|---|---|
| Type | Individual male contact |
| Series | HC-M-12 |
| Connection method | Crimp connection |
| Contact type | turned |
| Assembly instructions | At voltages of < 5 V and currents < 5 mA, gold-plated contacts are recommended. |
| Connection | The quality of a crimp connection is determined by DIN EN 60352-2. |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440204eCl@ss 8.027440204eCl@ss 9.027440204
