View larger
Images are for illustrative purposes only. Please refer to data sheet for details

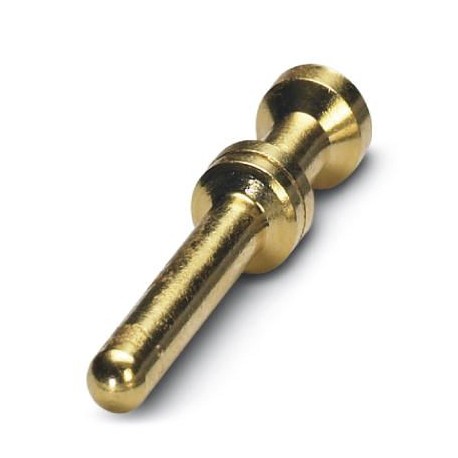

CK2,5-ED-0,5ST FE 1585760 PHOENIX CONTACT Crimp contact
CK2,5-ED-0,5ST FE
1585760
PHOENIX CONTACT
25 Pcs.
Crimp contact
Crimped contact, contact diameter: 2.5 mm, machined, Male, contact material: Iron, contact surface: hard gold, connection cross-section: 0.5 mm² ... 0.5 mm², AWG 20
Connectors > Contact for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1585760 |
|---|---|
| Packing unit | 25 pc |
| Minimum order quantity | 25 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 668 (C-2-2017) |
| GTIN | 4046356308267 |
| Weight per Piece (excluding packing) | 1.210 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Conductor cross section | 0.5 mm² ... 0.5 mm² |
|---|---|
| Connection cross section AWG | 20 |
| Stripping length of the individual wire | 7.5 mm (9.5 mm at HC-M-HV...) |
| Contact diameter | 2.5 mm |
| Insertion/withdrawal cycles | ≥ 500 |
General
| Note | For HC-M-06, HC-M-HV, HC-M-08, HC-A, HC-BB, HC-B and HC-HV contact inserts, the quality of a crimp connection is determined by the DIN EN 60 352-2 |
|---|---|
| Type | Individual male contact |
| Series | HC-M-06; HC-M-HV; HC-M-08; HC-A; HC-BB; HC-B; HC-HV |
| Connection method | Crimp connection |
| Contact type | turned |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440204eCl@ss 8.027440204eCl@ss 9.027440204
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Ambient temperature (EF002386) | 125 °C |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.5 mm² |
| Type of electric connection (EF003961) | Crimp connection |
| Strip length (EF006824) | 7.5 mm |
| Diameter plug-in contact (EF007320) | 2.5 mm |
| Material contact (EF007544) | Iron |
| Material of contact surface (EF004020) | Other |
| Min. number of insertion cycles (EF012212) | 500 |
