View larger
Images are for illustrative purposes only. Please refer to data sheet for details

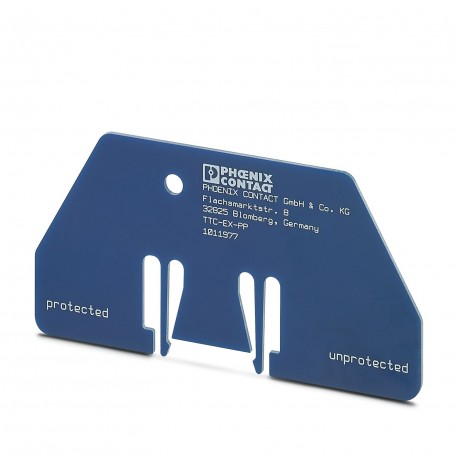

TTC-EX-PP 1011977 PHOENIX CONTACT Separating plate
TTC-EX-PP
1011977
PHOENIX CONTACT
10 Pcs.
Separating plate
Spacer plate for NS-35/7.5 rails to ensure the 50 mm wire dimension between the remote warning module and surge protection in TTC-EX systems.
Partition plate for NS-35/7,5 DIN rails to ensure a clearance of 50 mm between the remote signaling module and surge protection in TTC-EX systems.
Automation > Accessories/spare parts for surge protection data networks/MCR-technology
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Partition plate |
| Data management status | |
| Article revision | 00 |
Mounting
| Mounting type | DIN rail: TH 35 - 7.5 mm |
Material specifications
| Color | blue (RAL 5015) |
| Flammability rating according to UL 94 | V-0 |
| Housing material | FR 4-21 |
Dimensions
| Dimensional drawing |  |
| Width | 1.6 mm |
| Height | 150 mm |
| Depth | 76 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
