View larger
Images are for illustrative purposes only. Please refer to data sheet for details

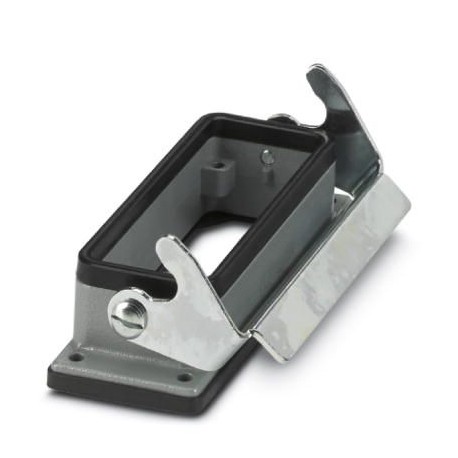

TTC-6P-2-HC-M-24DC-UT-I 1585692 PHOENIX CONTACT Housing
TTC-6P-2-HC-M-24DC-UT-I
1585692
PHOENIX CONTACT
10 Pcs.
Housing
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1585692 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356304726 |
| Weight per Piece (excluding packing) | 162.090 g |
| Custom tariff number | 76169910 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 29 mm |
|---|---|
| Width | 43 mm |
| Length | 114 mm |
| Length of the assembly cutout | 86 mm |
| Width of the assembly cutout | 35 mm |
Ambient conditions
| Degree of protection of housing (IP) | IP65 (When plugged in) |
|---|---|
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K |
|---|---|
| Size | B16 |
| Torque | 1.5 Nm ... 2 Nm (Mounting screw) |
| Housing material | Aluminum die-cast |
| Housing surface material | Powder-coated, gray |
| Material lock | Steel, galvanized |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
