PHOENIX CONTACT PTSA 1,5/ 7-3,5 MIXC PA V004 PTSA 1,5/ 7-3,5 MIXC PA V004 1709183 PHOENIX CONTACT PCB terminal block View larger

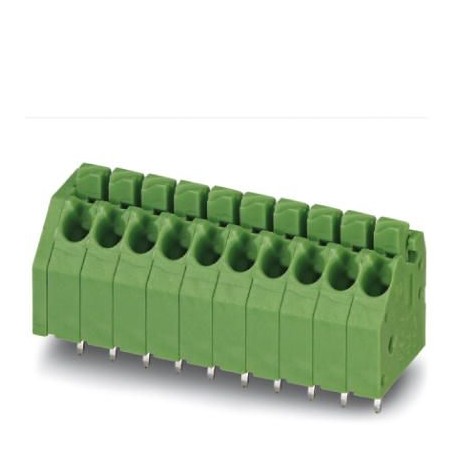

Images are for illustrative purposes only. Please refer to data sheet for details

PTSA 1,5/ 7-3,5 MIXC PA V004 1709183 PHOENIX CONTACT PCB terminal block

PTSA 1,5/ 7-3,5 MIXC PA V004

1709183

PHOENIX CONTACT

140 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 8 A, dimensioning voltage (III/2): 250 V, nominal cross-section: 1.5 mm², Number of potentials: 7, Number of rows: 1, Number of poles per row: 7, article family: PTSA 1.5, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45°, color: multicolor, Pin arrangement: Mixed individual pin arrangement, Pin length [P]:3.6 mm, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1709183
Packing unit1
GTIN4055626056043
Custom tariff number85369010

Dimensions

Length [ l ]12 mm
Pitch3.5 mm
Dimension a21 mm
Width [ w ]26 mm
Height13.1 mm
Height [ h ]13.1 mm
Solder pin [P]3.6 mm
Pin spacing3.5 mm
Hole diameter1 mm

General

Range of articlesPTSA 1,5
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)200 V
Rated voltage (III/2)250 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Nominal cross section1.5 mm²
Solder pin surface
Stripping length9 mm
Number of positions7

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.16

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
