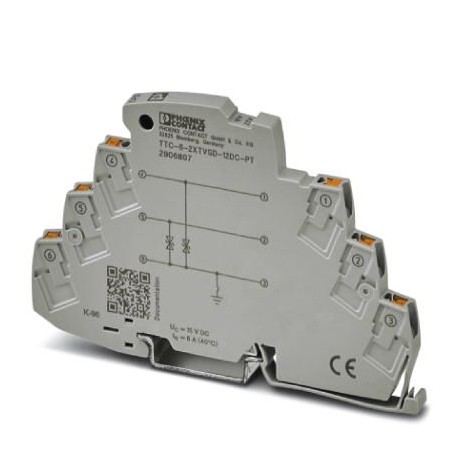

PHOENIX CONTACT TTC-6-2XTVSD-12DC-PT TTC-6-2XTVSD-12DC-PT 2906807 PHOENIX CONTACT Fine surge protection for two signal wires with common referenc.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TTC-6-2XTVSD-12DC-PT 2906807 PHOENIX CONTACT Fine surge protection for two signal wires with common referenc..

TTC-6-2XTVSD-12DC-PT

2906807

PHOENIX CONTACT

1 Pcs.

Fine surge protection for two signal wires with common reference potential.

Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2906807
Packing unit1 pc
Catalog pagePage 148 (C-4-2019)
GTIN4055626135717
Weight per Piece (excluding packing)0.000 g
Custom tariff number85363010
Country of originDE (Germany)

Drawings

Diagram

Diagram

Dimensional drawing

Dimensional drawing

Circuit diagram

Circuit diagram

Back to top

Dimensions

Height105.8 mm
Width6.2 mm +0.1 mm
Depth69.5 mm (incl. DIN rail 7.5 mm)
Back to top

Ambient conditions

Ambient temperature (operation)-40 °C ... 85 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)5 % ... 95 %
Altitude≤ 4000 m (amsl (above mean sea level))
Degree of protectionIP20
Back to top

General

Housing materialPBT
Flammability rating according to UL 94V-0
Colortraffic grey A RAL 7042
Mounting typeDIN rail: TH 35 - 7.5 mm
TypeDIN rail module, one-piece
Direction of actionLine-Earth Ground
Back to top

Protective circuit

IEC test classificationC1
C2
C3
Nominal voltage UN12 V DC
Maximum continuous voltage UC15 V DC
10 V AC
Rated current6 A (55 °C)
Residual current IPE≤ 200 µA
Nominal discharge current In(8/20) µs (line-earth)0.5 kA
Total discharge current Itotal(8/20) µs2 kA
Voltage protection level Up(line-earth)≤ 35 V (C1 - 1 kV/500 A)
≤ 40 V (C2 - 2 kV/1 kA)
≤ 25 V (C3 - 25 A)
≤ 25 V (C3 - 100 A)
Response time tA(line-earth)≤ 1 ns
Input attenuation aE, asym.typ. 0.3 dB (≤ 130 kHz/150 Ω)
Cut-off frequency fg (3 dB), asym. (PE) in 150 Ohm systemtyp. 420 kHz
Capacity (line-earth)typ. 5.2 nF
Resistance per path≤ 100 mΩ
Max. required back-up fuse6.3 A (FF)
Impulse durability (line-earth)C1 - 1 kV / 500 A
C2 - 2 kV / 1 kA
C3 - 100 A
Back to top

Connection data

Connection methodPush-in connection
Stripping length8 mm
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section AWG24 ... 12
Back to top

Standards and Regulations

Standards/specificationsIEC 61643-21 2000 + corrigendum 2001 + A1:2008, modified + A2:2012
EN 61643-21 2001 + A1:2009 + A2:2013
Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027140201
eCl@ss 4.127130801
eCl@ss 5.027130801
eCl@ss 5.127130801
eCl@ss 6.027130800
eCl@ss 7.027130807
eCl@ss 8.027130807
eCl@ss 9.027130807
Back to top

ETIM

ETIM 2.0EC000943
ETIM 3.0EC000943
ETIM 4.0EC000943
ETIM 5.0EC000943
ETIM 6.0EC000943
ETIM 7.0EC000943
Back to top

UNSPSC

UNSPSC 6.0130212010
UNSPSC 7.090139121610
UNSPSC 1139121610
UNSPSC 12.0139121610
UNSPSC 13.239121620
UNSPSC 18.039121620
UNSPSC 19.039121620
UNSPSC 20.039121620
UNSPSC 21.039121620
Back to top

ETIM for 2906807 Earthing, lightning and surge protection (EC000943)
Feature Name Feature Value
Nominal voltage DC (EF008799) 12 V
