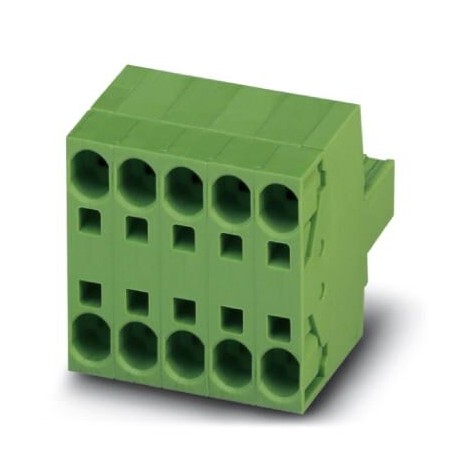

PHOENIX CONTACT TSPC 5/ 3-ST-7,62 BKCP13BDWHNZ TSPC 5/ 3-ST-7,62 BKCP13BDWHNZ 1012889 PHOENIX CONTACT Printed-circuit board connector TSPC 5/ 3-ST-7,62 BKC.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TSPC 5/ 3-ST-7,62 BKCP13BDWHNZ 1012889 PHOENIX CONTACT Printed-circuit board connector TSPC 5/ 3-ST-7,62 BKC..

TSPC 5/ 3-ST-7,62 BKCP13BDWHNZ

1012889

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector - TSPC 5/ 3-ST-7,62 BKCP13BDWHNZ - 1012889 Connector for printed circuit board, nominal section: 6 mm², color: black, nominal current: 41 A, nominal voltage (III/2): 1000 V, contact surface: Tin, contact type: Female, number of rows: 1, number of poles: 3, family of articles: TSPC 5/.. -ST, pitch: 7.62 mm, connection type: Push-in spring connection, driver/printed circuit board connection direction: 0°, clamping hook: - Clamping hook, plug-in system: COMBICON PC 5, locking: without, fixing type: without, packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB connector, nominal current: 41 A, rated voltage (III/2): 1000 V, number of positions: 3, pitch: 7.62 mm, connection method: Push-in spring connection, color: black, contact surface: Tin

Key Commercial Data

Orderkey1012889
Packing unit1
GTIN4055626490540
Custom tariff number85366990

Dimensions

Length [ l ]41.45 mm
Width [ w ]22.86 mm
Height [ h ]35.05 mm
Pitch7.62 mm
Dimension a15.24 mm

General

Range of articlesTSPC 5/..-ST
Number of positions3
Connection methodPush-in spring connection
Nominal cross section6 mm²

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440309
eCl@ss 8.027440309
eCl@ss 9.027440309

ETIM

ETIM 5.0EC002638
ETIM 6.0EC002638
ETIM 7.0EC002638

ETIM for 1012889 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 7.62 mm
Modular spacing connections (EF006827) 7.62 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 41 A
Rated voltage (EF000228) 1000 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
