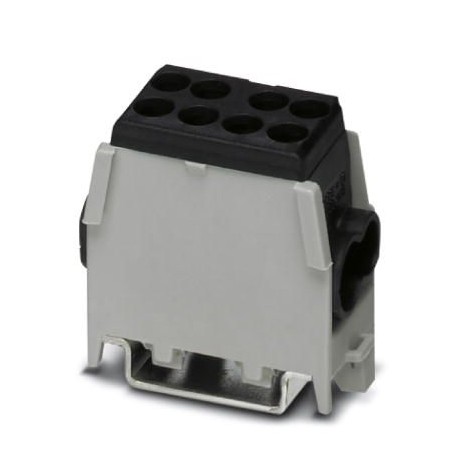

PHOENIX CONTACT UDB 2X25/16 BK UDB 2X25/16 BK 3071356 PHOENIX CONTACT Trunk line branch terminal View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UDB 2X25/16 BK 3071356 PHOENIX CONTACT Trunk line branch terminal

UDB 2X25/16 BK

3071356

PHOENIX CONTACT

5 Pcs.

Trunk line branch terminal Main cable branch module, rated voltage: 400 V, rated current: 101 A, number of connections: 4, number of poles: 1, connection type: Screw connection, 1st floor, Sizing section: 25 mm², section: 1.5 mm² - 25 mm², Screw connection, 2. Floor, section: 1.5 mm² - 16 mm², mounting class: NS 35/7.5, NS 35/15, Color: Black

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3071356
Packing unit5 pc
Minimum order quantity5 pc
Catalog pagePage 562 (C-1-2017)
GTIN4046356736015
Weight per Piece (excluding packing)50.470 g
Custom tariff number85369010
Country of originDE (Germany)

General

Number of positions1
Number of levels1
Number of connections4
Potentials1
Nominal cross section25 mm²
Colorblack
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition3.26 W
Maximum load current101 A
Nominal current IN101 A
Nominal voltage UN400 V (max. 1000 V)
Open side panelNo

Dimensions

Width23 mm
Length46 mm
Height NS 35/7,542 mm
Height NS 35/1549.5 mm

Connection data

Connection methodScrew connection
Screw threadM5/M6
Stripping length16 mm
Tightening torque, min2.2 Nm
Tightening torque max2.5 Nm
Connection in acc. with standardIEC 60998-1
NoteUse ferrules for stranded conductors
Conductor cross section solid min.1.5 mm²
Conductor cross section solid max.25 mm²
Conductor cross section AWG min.8
Conductor cross section AWG max.2
Conductor cross section flexible min.10 mm²
Conductor cross section flexible max.16 mm²
Min. AWG conductor cross section, flexible8
Max. AWG conductor cross section, flexible3
Conductor cross section flexible, with ferrule without plastic sleeve min.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.16 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.10 mm²
Connection methodScrew connection
Stripping length16 mm
Connection in acc. with standardIEC 60998-1
Tightening torque, min1.7 Nm
Tightening torque max2 Nm
Conductor cross section solid min.1.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.10 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.6 mm²

Standards and Regulations

Connection in acc. with standardIEC 60998-1
IEC 60998-1
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3071356 Terminal blocks (EC000897)
Feature Name Feature Value
Rated current In (EF008250) 101 A
Rated voltage (EF000228) 400 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of levels (EF002659) 1
Number of clamp positions per level (EF002660) 4
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 23 mm
Height (EF000040) 46 mm
Depth (EF000049) 42 mm
Closing plate required (EF002525) No
Colour (EF000007) Black
