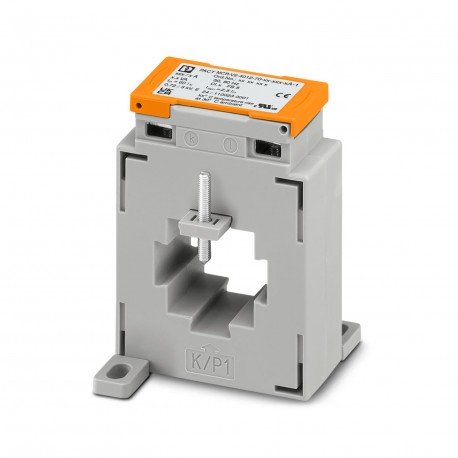

PHOENIX CONTACT PACT MCR-V2-4012-70-800-5A-1 PACT MCR-V2-4012- 70- 800-5A-1 2277145 PHOENIX CONTACT Current transformer View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PACT MCR-V2-4012- 70- 800-5A-1 2277145 PHOENIX CONTACT Current transformer

PACT MCR-V2-4012-70-800-5A-1

2277145

PHOENIX CONTACT

1 Pcs.

Current transformer Transformer through bar current, primary current 800 A AC; secondary current 5 A AC; accuracy class 1; Sizing power 10 VA Window-type current transformer, 800 A AC primary current; 5 A AC secondary current; accuracy class 1; 10 VA rated power

Automation > Current transformer
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeCurrent transformer
Data management status
Article revision07
Electrical properties
Rated insulation voltage1 kV (Phase/neutral conductor)
General
Can be calibratedno
Converter typeWindow-type current transformer
Input data
Current transformer
Rated power10 VA
Thermal rated short-time currentIth= 60 * In
Thermal rated continuous currentId= 1.2 * In
Rated surge currentIdyn= 2.5 * Ith
Rated frequency fn50 Hz
60 Hz
Primary rated current Ipn0 A AC ... 800 A AC
Can be calibratedno
Converter typeWindow-type current transformer
Output data
Signal
DesignationCurrent output
Secondary rated current Isn5 A AC
Surge current limitation factorFS 5
Accuracy class1
Connection data
Connection methodScrew connection
Conductor cross section flexible2x 10 mm² (Secondary terminals)
Tightening torque2 Nm
Dimensions
Item dimensions
Width31 mm
Height92 mm
Depth70 mm
Item dimensions with alternative mounting
Width70 mm
Height92 mm
Depth31 mm
Copper rail
Width40 mm
Height12 mm
Copper rail 2
Width30 mm
Height10 mm
Circular conductor
Diameter33 mm
Material specifications
Colorgray (RAL 7042)
Housing materialPA 6.6
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-25 °C ... 40 °C
Ambient temperature (storage/transport)-25 °C ... 40 °C
Altitude≤ 1000 m
Permissible humidity (operation)Use only indoors, non-condensing
Insulating material classH
Approvals
CE
CertificateCE-compliant
UKCA
CertificateUKCA-compliant
UL, USA/Canada
IdentificationXODW8.E323953
Standards and regulations
Standards/regulationsEN 61869
Mounting
Mounting typeDIN rail mounting
Wall mounting

ETIM for 2277145 Low-voltage industrial controls and switchgear (EC002048)
Feature Name Feature Value
Model (EF000010) Attachable current transformer
Rated primary current (EF007405) 800 A
Rated secondary current (EF007471) 5 A
Rated secondary apparent power (EF007470) 10 VA
Accuracy class (EF008842) Other
Overcurrent limiting factor (EF007511) FS 5
Calibrated (EF008836) No
With contact protection (EF008186) No
Height opening (EF012757) 12 mm
Width opening (EF012758) 40 mm
Opening diameter (EF005153) 33 mm
Snap mounting (EF007462) No
With copper rail (EF007380) No
