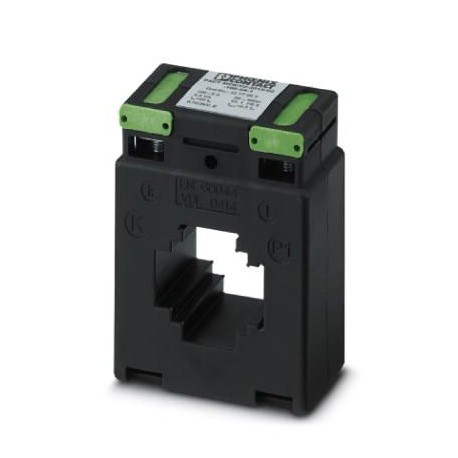

PHOENIX CONTACT PACT MCR-V2-3015-60-100-5A-1 PACT MCR-V2-3015- 60- 100-5A-1 2277064 PHOENIX CONTACT Current transformer View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PACT MCR-V2-3015- 60- 100-5A-1 2277064 PHOENIX CONTACT Current transformer

PACT MCR-V2-3015-60-100-5A-1

2277064

PHOENIX CONTACT

1 Pcs.

Current transformer Transformer through bar current, primary current 100 A AC; secondary current 5 A AC; accuracy class 1; Sizing power 2.5 VA

Automation > Current transformer
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2277064
Packing unit1 pc
Catalog pagePage 224 (C-5-2017)
GTIN4046356305273
Weight per Piece (excluding packing)272.200 g
Custom tariff number85043129
Country of originDE (Germany)

Dimensions

Primary round conductor (diameter)28 mm
Primary round conductor (width)30 mm
Primary round conductor (height)15 mm
Primary round conductor (width)20 mm
Primary round conductor (height)20 mm
Width30 mm
Height80 mm
Depth60 mm
Width with alternative assembly60 mm
Height with alternative assembly80 mm
Depth with alternative assembly30 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 40 °C
Ambient temperature (storage/transport)-25 °C ... 40 °C
Maximum altitude≤ 1000 m

Input data

Number of inputs1
Thermal rated short-time currentIth= 60 * In
Thermal rated continuous currentId= 1.2 * In
Rated surge currentIdyn= 2.5 * Ith
Rated frequency: Standard converter50 Hz ... 60 Hz
Rated frequency: Calibrated converter50 Hz
Surge current limitation factorFS 5
Rated power2.5 VA
Primary rated current Ipn0 A ... 100 A
Secondary rated current Isn5 A AC

Output data

Connection methodScrew connection

General

Converter typePlug-on converters
Accuracy class1
Can be calibratedno
Rated insulation voltage1 kV (Phase/neutral conductor)
Standards/regulationsEN 50178
EN 61869
Colorblack
Housing materialPA 6.6
UL, USA/CanadaXODW8.E323953

Standards and Regulations

Standards/regulationsEN 50178
EN 61869
UL, USA/CanadaXODW8.E323953

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2277064 Low-voltage industrial controls and switchgear (EC002048)
Feature Name Feature Value
Model (EF000010) Attachable current transformer
Rated primary current (EF007405) 100 A
Rated secondary current (EF007471) 5 A
Rated secondary apparent power (EF007470) 2.5 VA
Accuracy class (EF008842) Other
Overcurrent limiting factor (EF007511) FS 5
Calibrated (EF008836) No
With contact protection (EF008186) No
Height opening (EF012757) 20 mm
Width opening (EF012758) 30 mm
Opening diameter (EF005153) 28 mm
Snap mounting (EF007462) No
With copper rail (EF007380) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
