View larger
Images are for illustrative purposes only. Please refer to data sheet for details

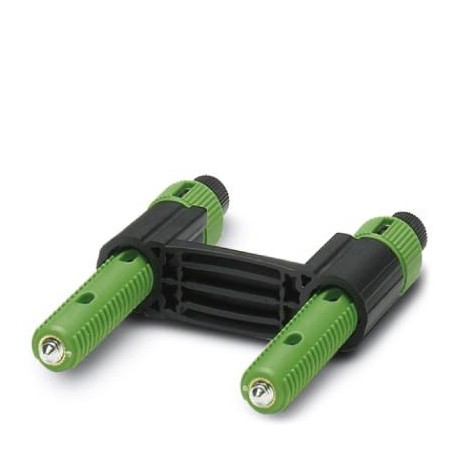

PACT-FAST-MNT-W16-L65 2276641 PHOENIX CONTACT Mounting material
PACT-FAST-MNT-W16-L65
2276641
PHOENIX CONTACT
1 Pcs.
Mounting material
The quick converter clamping enables extra-fast mounting of PACT current transformers on the busbar. The installation can be easily operated with the force of your fingers, without the use of tools. Fixing pins: 65 mm, clamping tab: 16 mm
Automation > Accessories/spare parts for low-voltage switch technology
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2276641 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 233 (C-5-2017) |
| GTIN | 4046356659017 |
| Weight per Piece (excluding packing) | 46.200 g |
| Custom tariff number | 39269097 |
| Country of origin | CN (China) |
General
| Torque | 0.4 Nm |
|---|---|
| Note | The 16 mm wide converter attachment can also be used for larger current transformers if the length of the fixing pins is sufficient. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
