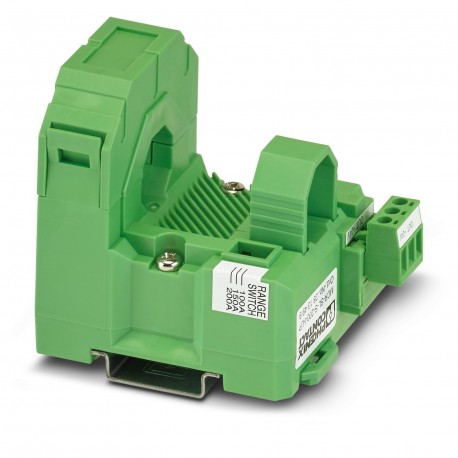

PHOENIX CONTACT MCR-SL-S-200-I-LP MCR-SL-S-200-I-LP 2813499 PHOENIX CONTACT Current transducers View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCR-SL-S-200-I-LP 2813499 PHOENIX CONTACT Current transducers

MCR-SL-S-200-I-LP

2813499

PHOENIX CONTACT

1 Pcs.

Current transducers MCR current converter, for measuring sinusoidal and non-sinusoidal alternating currents, input current 0...200 A, Loop-powered output with 4...20 mA

Automation > Current value transformer
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2813499
Packing unit1 pc
Catalog pagePage 247 (C-5-2017)
GTIN4046356043670
Weight per Piece (excluding packing)144.500 g
Custom tariff number85437090
Country of originJP (Japan)

Dimensions

Primary round conductor (diameter)18.5 mm
Width55 mm
Height85 mm
Depth70.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C

Input data

InputCurrent measuring input
Input current range0 A ... 200 A (0 ... 100/150/200 A)
Operate threshold1 % (of final value)
Setting range for min. input current0 A ... 100 A
Setting range for max. input current0 A ... 200 A
Overload capacityDepending on laid conductor
Surge strengthDepending on through connected conductor
Frequency measuring range30 Hz ... 6000 Hz

Output data

Output nameCurrent output
Current output signal4 mA ... 20 mA
Max. output current< 25 mA
Load/output load current output(UB- 12 V) x 350 / 12 A

Switching output

Output nameNo switching output

Power supply

Supply voltage range20 V DC ... 30 V DC

Connection data

Connection methodPluggable screw connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Stripping length8 mm
Screw threadM3

General

Maximum transmission error< 1 % (of final value)
Maximum temperature coefficient< 0.025 %/K
Step response (10-90%)< 340 ms
Overvoltage categoryIII
Degree of pollution2
Rated insulation voltage300 V AC (to earth)
Test voltage input/output5 kV (50 Hz, 1 min.)
Colorgreen
Housing materialPolyamide PA non-reinforced
Mounting positionany
ConformanceCE-compliant
UL, USA/CanadaUL/C-UL listed UL 508
Torque0.5 Nm ... 0.6 Nm (4,4 ... 5,31 lbf-in.)

Standards and Regulations

ConformanceCE-compliant
UL, USA/CanadaUL/C-UL listed UL 508

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2813499 Sensors (EC002475)
Feature Name Feature Value
Initial value measuring range current (EF008198) 0 A
End value measuring range current (EF008266) 200 A
Type of analogy output (EF003958) 4-20 mA
Integrated configuration function (EF003064) Yes
With switching output (EF005225) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
