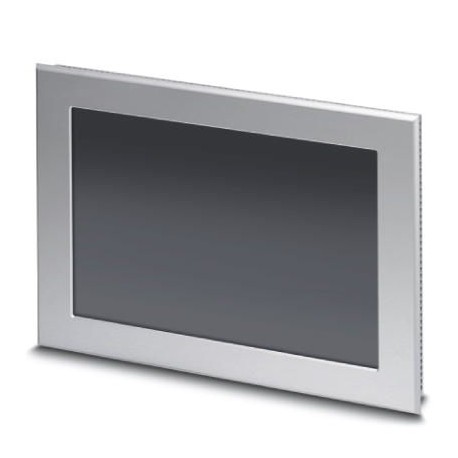

TP 3121S/WT-65 SER 1051756 PHOENIX CONTACT Touch panel
TP 3121S/WT-65 SER
1051756
PHOENIX CONTACT
1 Pcs.
Touch panel
Rugged-Touch panel with 30.7 cm / 12.1"-TFT-screen (analog-resistive (GFG)), 800 x 600 pixel(s) (SVGA), 16.7 million colors, Arm®Cortex®-A8, 1000 MHz, 2x USB 2.0, 1x COM (RS-232), 1x COM (RS-422/485), 1x Ethernet (10/100 MBits/s), RJ45, Windows®Embedded Compact 7 and user software: Visu+. (Bus system: SIN)
Automation > Graphic panel
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1051756 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626673462 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 84714100 |
| Country of origin | DE (Germany) |
Dimensions
| External dimension, width | 340 mm |
|---|---|
| External dimension, height | 270 mm |
| External dimension, depth | 5 mm |
| Note regarding external dimension | Dimensions of the front plate |
| Installation dimension, width | 315 mm |
| Installation dimension, height | 244 mm |
| Installation dimension, depth | 54 mm |
| Note regarding installation dimension | Mounting cutout, depth with bus if bus system present in the device |
Display
| Display | 30.7 cm/12.1" TFT |
|---|---|
| Brightness | 360 cd/m² typical (adjustable) |
| Screen resolution | 800 x 600 Pixel(s) (SVGA) |
| Backlighting | LED |
| Display backlight MTBF | 50000 h |
| Touch technology | Analog resistive (GFG) |
| Colors | 16.7 million colors |
| Reading angle left | 80 ° |
| Reading angle right | 80 ° |
| Reading angle top | 65 ° |
| Reading angle bottom | 75 ° |
Computer data
| Processor | ARM®Cortex®-A8, 1000 MHz |
|---|---|
| Operating system | Windows®Embedded Compact 7 |
| User software | Visu+ |
| RAM | 512 MB LPDDR RAM |
| 1 MB SRAM | |
| Mass storage | NAND-Flash, 1 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB 2.0 |
| 1x COM (RS-232) | |
| 1x COM (RS-422/485) | |
| Bus system | without |
| Slots | 1x SD |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Extras | Integrated acoustic signal (buzzer) |
|---|---|
| Material front plate | Aluminum (natural anodized) |
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 3000 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| Ambient temperature (operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -30 °C ... 80 °C |
| Permissible humidity (operation) | 5 % ... 95 % (Front) |
| 20 % ... 85 % (On the rear) | |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 15; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
