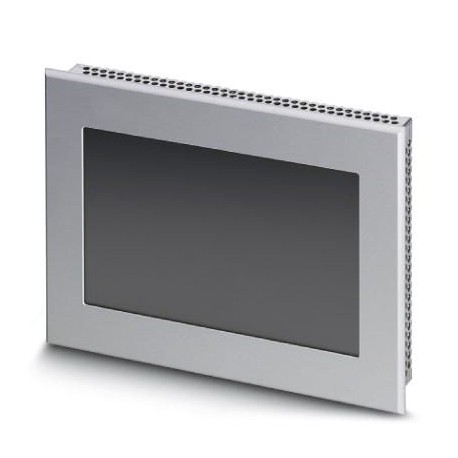

TP 3070W/WT-65 1044266 PHOENIX CONTACT Touch panel
TP 3070W/WT-65
1044266
PHOENIX CONTACT
1 Pcs.
Touch panel
Rugged touchpad with 17.8 cm/7" TFT display (analog-resistive (GFG)), 800 x 480 pixels (WVGA), IP65 rating (front), extended temperature range, Arm®Cortex®-A8, 1000 MHz, Windows®Embedded Compact 7 and Visu+ user software.
Automation > Graphic panel
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1044266 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626620930 |
| Weight per Piece (excluding packing) | 1,100.000 g |
| Custom tariff number | 84714100 |
| Country of origin | DE (Germany) |
Dimensions
| External dimension, width | 208 mm |
|---|---|
| External dimension, height | 148 mm |
| External dimension, depth | 5 mm |
| Note regarding external dimension | Dimensions of the front plate |
| Installation dimension, width | 200 mm |
| Installation dimension, height | 140 mm |
| Installation dimension, depth | 51 mm |
| Note regarding installation dimension | Mounting cutout, depth with bus if bus system present in the device |
Display
| Display | 17.8 cm/7" TFT |
|---|---|
| Brightness | 400 cd/m², typical (adjustable) |
| Screen resolution | 800 x 480 Pixel(s) (WVGA) |
| Backlighting | LED |
| Display backlight MTBF | 50000 h |
| Touch technology | Analog resistive (GFG) |
| Colors | 65536 colors |
| Reading angle left | 70 ° |
| Reading angle right | 70 ° |
| Reading angle top | 60 ° |
| Reading angle bottom | 60 ° |
Computer data
| Processor | ARM®Cortex®-A8, 1000 MHz |
|---|---|
| Operating system | Windows®Embedded Compact 7 |
| User software | Visu+ |
| RAM | 512 MB LPDDR SDRAM |
| 1 MB SRAM | |
| Mass storage | NAND-Flash, 1 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 2.0 |
| Bus system | without |
| Slots | 1x SD |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Extras | Integrated acoustic signal (buzzer) |
|---|---|
| Material front plate | Aluminum (natural anodized) |
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 1100 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | -32 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Permissible humidity (operation) | 5 % ... 95 % (Front) |
| 20 % ... 85 % (On the rear) | |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 15; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
