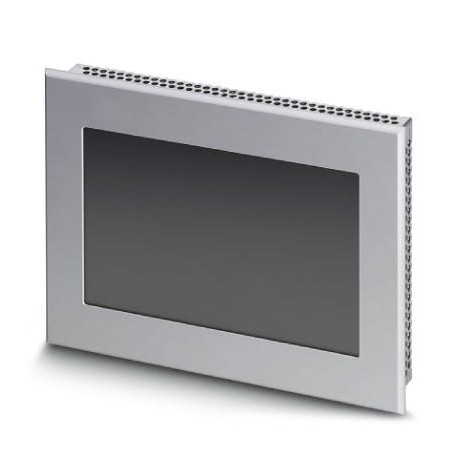

PHOENIX CONTACT TP 3070W SER TP 3070W SER 1034400 PHOENIX CONTACT Touch panel View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TP 3070W SER 1034400 PHOENIX CONTACT Touch panel

TP 3070W SER

1034400

PHOENIX CONTACT

1 Pcs.

Touch panel Touch panel with 17.8 cm / 7"-TFT-screen (analog-resistive (polyester)), 800 x 480 pixel(s) (WVGA), 262144 colors, Arm®Cortex®-A8, 800 MHz, 2x USB Host 2.0, 1x COM (RS-232), 1x COM (RS-422/485), 1x Ethernet (10/100 MBits/s), RJ45, Windows®Embedded Compact 7 and user software: Visu+ / AX OPC Server. (Bus system: SIN)

Automation > Graphic panel
Control Systems (CST)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1034400
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4055626541112
Weight per Piece (excluding packing)800.000 g
Custom tariff number84714100
Country of originDE (Germany)

Dimensions

Outer dimensions: width, height, depth203 mm x 147 mm x 5 mm (Dimensions of the front plate)
Installation dimensions: width, height, installation depth195 mm x 139 mm x 71 mm (Installation cutout)
External dimension, width203 mm
External dimension, height147 mm
External dimension, depth5 mm
Note regarding external dimensionDimensions of the front plate
Installation dimension, width195 mm
Installation dimension, height139 mm
Installation dimension, depth71 mm
Note regarding installation dimensionInstallation cutout

Display

Display17.8 cm/7" TFT
Brightness350 cd/m², typical (adjustable)
Screen resolution800 x 480 Pixel(s) (WVGA)
BacklightingLED
Display backlight MTBF40000 h
Touch technologyanalog resistive (polyester)
Colors262144 colors
Reading angle left70 °
Reading angle right70 °
Reading angle top65 °
Reading angle bottom65 °

Computer data

ProcessorArm®Cortex®-A8, 800 MHz
Operating systemWindows®Embedded Compact 7
User softwareVisu+
AX OPC Server
RAM512 MB RAM
Mass storageNAND-Flash, 1 GB
Network1 x Ethernet (10/100 Mbps), RJ45
Interfaces2x USB host 2.0
1x COM (RS-232)
1x COM (RS-422/485)
Bus systemwithout
Slots1x SD
Realtime clockYes (battery-backed)
Service life of battery5 years (typical)

General

ExtrasIntegrated acoustic signal (buzzer)
Material front plateAluminum (natural anodized)
Housing materialSteel sheet, zinc-plated
Mounting typeFront installation
Weight800 g

Ambient conditions

Degree of protectionIP65 (front), IP20 (back)
NEMA 4X
Ambient temperature (operation)0 °C ... 50 °C
Ambient temperature (storage/transport)-25 °C ... 70 °C
Permissible humidity (operation)20 % ... 85 % (non-condensing)
Permissible humidity (storage/transport)20 % ... 85 % (non-condensing)
Vibration (operation)1g, according to EN 60068-2-6
Shock15g, according to IEC 60068-2-27

Device supply

Power supply unit24 V DC ±20 %

Standards and Regulations

Shock15g, according to IEC 60068-2-27
Vibration (operation)1g, according to EN 60068-2-6

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 15;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
