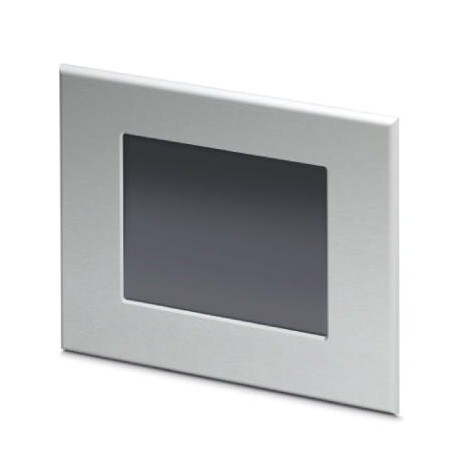

TP 3057V/WT SER 1090070 PHOENIX CONTACT Rugged-Touch panel with 14.5 cm/5.7" TFT active-display (Analog resi..

TP 3057V/WT SER

1090070

PHOENIX CONTACT

1 Pcs.

Rugged-Touch panel with 14.5 cm/5.7" TFT active-display (Analog resistive (GFG)), 640 x 480 pixel(s) (VGA), 262144 colors, Arm Rugged-touch panel with 14.5 cm / 5.7" TFT-screen (analog-resistive (GFG)), 640 x 480 pixel(s) (VGA), 262144 colors, Arm®Cortex®-A8, 1000 MHz, 2x USB Host 2.0, 1x COM (RS-232), 1x COM (RS-422/485), 1x Ethernet (10/100MBits/s), RJ45, Windows®Embedded Compact 7 and user software: Visu+. (Bus system: SIN)

Automation > Graphic panel
Control Systems (CST)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1090070
Packing unit1
GTIN4055626897172
Custom tariff number84714100

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area
Back to top

Dimensions

Outer dimensions: width, height, depth195 mm x 153 mm x 5 mm (Dimensions of the front plate)
Installation dimensions: width, height, depth161 mm x 119 mm x 42 mm (Mounting cutout, depth with bus if bus system present in the device)
Back to top

Display

Display14.5 cm/5.7" TFT active
Screen resolution640 x 480 Pixel(s) (VGA)
Touch technologyAnalog resistive (GFG)
Brightness400 cd/m², typical (adjustable)
BacklightingLED
Display backlight MTBF40000 h
Colors262144 colors
Reading angle left65 °
Reading angle right65 °
Reading angle top55 °
Reading angle bottom52 °
Back to top

Computer data

ProcessorArm®Cortex®-A8, 1000 MHz
Operating systemWindows®Embedded Compact 7
User softwareVisu+
RAM512 MB LPDDR SDRAM
1 MB SRAM
Mass storageNAND-Flash, 1 GB
Network1 x Ethernet (10/100 Mbps), RJ45
Interfaces2x USB Host 2.0
1x COM (RS-232)
1x COM (RS-422/485)
Bus systemwithout
Slots1x SD
Realtime clockYes
Service life of battery5 years (typical)
Back to top

General

ExtrasIntegrated acoustic signal (buzzer)
Material front plateAluminum (natural anodized)
Housing materialSteel sheet, zinc-plated
Mounting typeBolt fixing
Weight800 g
Back to top

Ambient conditions

Degree of protectionIP67 (front), IP20 (back)
NEMA 4X
Ambient temperature (operation)-20 °C ... 70 °C
Ambient temperature (storage/transport)-30 °C ... 80 °C
Permissible humidity (operation)5 % ... 95 % (Front)
20 % ... 85 % (On the rear)
Vibration (operation)1g, according to EN 60068-2-6
Shock15g, according to IEC 60068-2-27
Back to top

Device supply

Typical current consumption0.4 A
Power supply unit24 V DC ±20 %
Back to top

Standards and Regulations

Shock15g, according to IEC 60068-2-27
Vibration (operation)1g, according to EN 60068-2-6
Back to top

Classifications

eCl@ss

eCl@ss 4.027330203
eCl@ss 4.127330203
eCl@ss 5.027330202
eCl@ss 5.127330200
eCl@ss 6.027242300
eCl@ss 7.027242302
eCl@ss 8.027242302
eCl@ss 9.027330201
Back to top

ETIM

ETIM 4.0EC001412
ETIM 5.0EC001412
ETIM 6.0EC001412
ETIM 7.0EC001412
Back to top

UNSPSC

UNSPSC 13.243211904
UNSPSC 18.043211904
UNSPSC 19.043211904
UNSPSC 20.043211904
UNSPSC 21.043211904
Back to top
