TOOL-CASE 1212629 PHOENIX CONTACT Toolbox

Name: TOOL-CASE 1212629 PHOENIX CONTACT Toolbox
Brand: PHOENIX CONTACT
SKU: 1212629

Reference: TOOL-CASE

Code: 1212629

Manufacturer: PHOENIX CONTACT

Units per package: 1 Pcs.

Description:

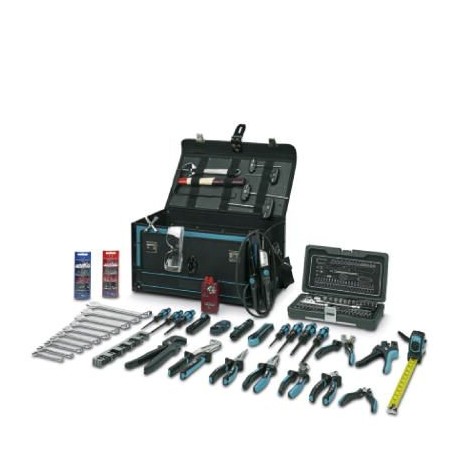

Toolbox Tool case with lock and adjustable carrying strap, equipped with: cable cutter, side cutting pliers, microcutter, wire strippers, hose strippers, crimping tool set, universal pliers, tip pliers, parrot beak pliers, VDE flat and star tip screwdriver, control cabinet wrench, tension tester, ferrule box, blades, tape measure, continuity tester, Tracing Tip, Star Wrench Set, Fixed and English Key, T-Handle Allen Wrench, Goggles, Hammer, 47-Piece Ratchet Wrench Set, 1/4"

Categories:
Tools > Tool set
TOOL fox

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Key Commercial Data

Orderkey	1212629
Packing unit	1 pc
Catalog page	Page 476 (C-3-2017)
GTIN	4046356652483
Weight per Piece (excluding packing)	13,280.000 g
Custom tariff number	82060000
Country of origin	DE (Germany)

Dimensions

Length (b)	510 mm
Width (a)	260 mm
Depth	260 mm
Height (c)	270 mm

General

Material	Polyester

Environmental Product Compliance

California Proposition 65	Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration

Articles in set

Cable cutter, for copper and aluminum up to 12 mm diameter (up to 35 mm²)

Diagonal cutter for hard (piano wire) and soft wires, VDE 1000 V AC/1500 V DC tested

Electronic diagonal cutter, round head, without chamfer, with opening spring, mirror-polished and oiled, 2-component grip, cutting capacity: soft 0.2 - 2.0 mm; medium hard 1.2 mm; hard 0.5 mm diameter

Stripping tool, for cables and conductors from 0.02 - 10 mm², self-adjusting, stripping length of up to 18 mm, cutting capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade

Stripping tool, for stripping installation lines of Ø 8 - 13 mm , e.g. NYM 3 x 1.5 mm² to 5 x 2.5 mm², single line stripping 0.2 mm² - 4 mm² , with longitudinal cut blade and sliding knife

Stripping tool, for stripping lines of Ø 8 - 28 mm

Stripping tool, for stripping multicore signal, control and fiberglass wires of Ø 2.5 - 11 mm. Insulation thickness up to 1 mm

Crimping pliers set, consisting of CRIMPFOX-M (pliers) and dies for insulated cable lugs 0.5 ... 2.5 mm² (1212074), non-insulated conduit lugs 0.5 ... 6 mm² (1212079) and ferrules 0.25 ... 10 mm² (1212080) and 16/25 mm² (1212081).

Die, for Crimpfox-M, for insulated cable lugs 0.1 - 0.4 mm² and 4 - 6 mm² (light green, yellow), packed in a serial storage box

Combination pliers, notched gripping surface, VDE 1000 V AC/1500 V DC tested, size: 180 mm

Needle-nose pliers with blade, notched grip area, VDE 1000 V AC/1500 V DC tested

Water pump pliers, with groove joint, grip areas with dual notching, acc. to VDE ISO 8976

Screwdriver, slot-headed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-component grip, with non-slip grip

Screwdriver, slot-headed, VDE insulated, size: 0.5 x 3.0 x 100 mm, 2-component grip, with non-slip grip

Screwdriver, slot-headed, VDE insulated, size: 1.0 x 4.0 x 100 mm, 2-component grip, with non-slip grip

Screwdriver, slot-headed, VDE insulated, size: 1.0 x 6.5 x 150 mm, 2-component grip, with non-slip grip

Screwdriver, PH crosshead, VDE insulated, size: PH 0 x 80 mm, 2-component grip, with non-slip grip

Screwdriver, PH crosshead, VDE insulated, size: PH 1 x 80 mm, 2-component grip, with non-slip grip

Screwdriver, PH crosshead, VDE insulated, size: PH 2 x 100 mm, 2-component grip, with non-slip grip

Voltage tester, for DC and AC voltages from 12 V to 1000 V AC/1000 V DC, IP65

Control cabinet key, metal, for all common types of control cabinet

Assortment box, supplied with ferrules according to DIN 46228-4: 1990-09, 50 pcs. of each. AI 0,5-8 WH, AI 2,5-8 BU, 100 pcs. AI 0,75-8 GY, AI 1-8 RD, AI 1,5-8 BK

Assortment box, supplied with TWIN ferrules according to DIN 46228-4, CSA-certified, box contains 50 pcs. AI-TWIN 2x0,5-8 WH, AI-TWIN 2x0,75-8 GY, AI-TWIN 2x1-8 RD, AI-TWIN 2x1,5-8 BK, 25 pcs. AI-TWIN 2x2,5-10 BU

Tool case, unequipped, can be locked, with rubber straps to hold tools in place

T-handle screwdriver, for Allen screws, hexagonal (with chamfer), size: hex 2.5 x 100 mm, ergonomically shaped handle, matt chrome-plated

T-handle screwdriver, for Allen screws, hexagonal (with chamfer), size: hex 3 x 100 mm, ergonomically shaped handle, matt chrome-plated

T-handle screwdriver, for Allen screws, hexagonal (with chamfer), size: hex 4 x 150 mm, ergonomically shaped handle, matt chrome-plated

T-handle screwdriver, for Allen screws, hexagonal (with chamfer), size: hex 5 x 150 mm, ergonomically shaped handle, matt chrome-plated

1/4" socket set, 47-piece, 1/4" reversible ratchet, 48 teeth with fast locking system, 50 mm and 100 mm 1/4" extensions, 1/4" screwdriver handle, 150 mm 1/4" flexible extension, 1/4" Cardan joint, 1/4" T-handle
2 x 1/4" bit adapter, 13 knurled 1/4" sockets, wrench size: 4 / 4.5 / 5 / 5.5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 mm, 21 knurled socket bits: 6 x Torx^®T10, T15, T20, T25, T30, T40, 6 x Hex 3, 4, 5, 6, 7, 8 mm, 3 x Phillips recess^®PH1, PH2, PH3, 3 x Pozidriv^®PZ1, PZ2, PZ3, 3 x slotted 4, 5.5, 7 mm, Allen wrench Hex 1.27, 1.5, 2, 2.5 mm, breakage and impact-resistant plastic case with metal fastening

Measuring tape with automatic tape feed and locking mechanism, measuring rail: imperial/metric, length: 5 m

Classifications

eCl@ss 10.0.121045003eCl@ss 4.021040301eCl@ss 4.121040301eCl@ss 5.021043090eCl@ss 5.121049100eCl@ss 6.021049100eCl@ss 7.021045003eCl@ss 8.021045003eCl@ss 9.021045003

ETIM 3.0EC000149ETIM 4.0EC002498ETIM 5.0EC000149ETIM 6.0EC000149

UNSPSC 6.0130211811UNSPSC 7.090139121410UNSPSC 1139121410UNSPSC 12.0139121410UNSPSC 13.227113201

ETIM for 1212629 Hand tools (EC000149)
Feature Name	Feature Value
Number of crosshead screwdrivers Phillips PH (EF006373)	3
Number of crosshead screwdrivers Pozidriv PZ (EF006374)	0
Number of slotted screwdrivers (EF006379)	4
Number of socket spanners (EF006381)	47
Number of files (EF006637)	0
Number of measuring tools (EF007626)	1
Total number of tools (EF006386)	89
Packaging (EF000160)	Case
