PHOENIX CONTACT TOOL-CASE BASIC TOOL-CASE BASIC 1212428 PHOENIX CONTACT Toolbox

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

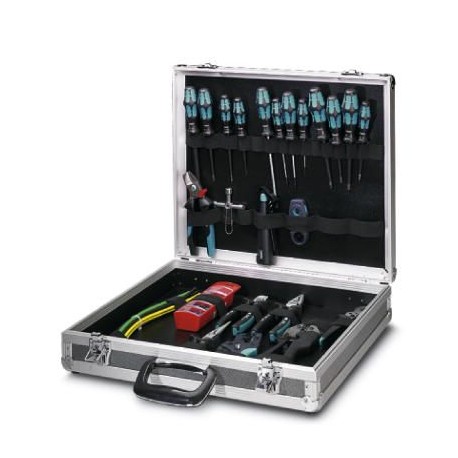

TOOL-CASE BASIC 1212428 PHOENIX CONTACT Toolbox

Name: TOOL-CASE BASIC 1212428 PHOENIX CONTACT Toolbox
Brand: PHOENIX CONTACT
SKU: 1212428

Reference: TOOL-CASE BASIC

Code: 1212428

Manufacturer: PHOENIX CONTACT

Units per package: 1 Pcs.

Description:

Toolbox Tool case, equipped with hose cutter, tip and combination pliers, wire stripping pliers, hose stripping tool, crimping pliers, screwdriver, control cabinet wrench, sample set, ferrule box

Categories:
Tools > Tool set
TOOL fox

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Key Commercial Data

Orderkey	1212428
Packing unit	1 pc
GTIN	4046356514613
Weight per Piece (excluding packing)	6,768.000 g
Custom tariff number	82060000
Country of origin	DE (Germany)

Environmental Product Compliance

California Proposition 65	Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration

Articles in set

Toolbox, without instruments, with rubber straps as tool fixtures

Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.14 mm² ... 10 mm², unlockable pressure lock, lateral entry

Crimping pliers, for insulated cable lugs, 0.5 mm² ... 6.0 mm² (red, blue, yellow), oval crimp, symmetrical

Cable cutter, angled, for copper and aluminum up to 18 mm diameter (up to 50 mm²)

Diagonal cutter for hard (piano wire) and soft wires, VDE 1000 V AC/1500 V DC tested

Combination pliers, notched gripping surface, VDE 1000 V AC/1500 V DC tested, size: 180 mm

Needle-nose pliers with blade, notched grip area, VDE 1000 V AC/1500 V DC tested

Stripping tool, for cables and conductors from 0.02 - 10 mm², self-adjusting, stripping length of up to 18 mm, cutting capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade

Stripping tool, for stripping multicore signal, control and fiberglass wires of Ø 2.5 - 11 mm. Insulation thickness up to 1 mm

Stripping tool, for stripping cables of 4.5 mm ‑ 40 mm‑Ø, insulation thickness of up to 4.5 mm, pivoting blade for round, lengthwise, and spiral cuts

Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.4 x 2.5 x 75 mm, 2-component grip, with non-slip grip

Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip

Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.8 x 4.0 x 100 mm, 2-component grip, with non-slip grip

Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 1.0 x 5.5 x 150 mm, 2-component grip, with non-slip grip

Screwdriver, slot-headed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-component grip, with non-slip grip

Screwdriver, slot-headed, VDE insulated, size: 0.5 x 3.0 x 100 mm, 2-component grip, with non-slip grip

Screwdriver, slot-headed, VDE insulated, size: 1.0 x 4.0 x 100 mm, 2-component grip, with non-slip grip

Screwdriver, slot-headed, VDE insulated, size: 1.0 x 6.5 x 150 mm, 2-component grip, with non-slip grip

Screwdriver, PH crosshead, VDE insulated, size: PH 1 x 80 mm, 2-component grip, with non-slip grip

Screwdriver, PH crosshead, VDE insulated, size: PH 2 x 100 mm, 2-component grip, with non-slip grip

Screwdriver, PZ crosshead, VDE insulated, size: PZ 1 x 80 mm, 2-component grip, with non-slip grip

Screwdriver, PZ crosshead, VDE insulated, size: PZ 2 x 100 mm, 2-component grip, with non-slip grip

Control cabinet key, metal, for all common types of control cabinet

Tool sample set

Assortment box, supplied with ferrules according to DIN 46228-4: 1990-09, 50 pcs. of each. AI 0,5-8 WH, AI 2,5-8 BU, 100 pcs. AI 0,75-8 GY, AI 1-8 RD, AI 1,5-8 BK

Classifications

eCl@ss 10.0.121045003eCl@ss 4.021040301eCl@ss 4.121040301eCl@ss 5.021043090eCl@ss 5.121049100eCl@ss 6.021049100eCl@ss 7.021045003eCl@ss 8.021045003eCl@ss 9.021045003

ETIM 2.0EC000149ETIM 3.0EC000149ETIM 4.0EC000149ETIM 5.0EC000149ETIM 6.0EC000149

UNSPSC 6.0130211811UNSPSC 7.090139121410UNSPSC 1139121410UNSPSC 12.0139121410UNSPSC 13.227113201

ETIM for 1212428 Hand tools (EC000149)
Feature Name	Feature Value
Number of crosshead screwdrivers Phillips PH (EF006373)	2
Number of crosshead screwdrivers Pozidriv PZ (EF006374)	2
Number of slotted screwdrivers (EF006379)	8
Number of socket spanners (EF006381)	0
Number of files (EF006637)	0
Number of measuring tools (EF007626)	0
Total number of tools (EF006386)	22
Packaging (EF000160)	Case
