PHOENIX CONTACT SMKDS 1,5/ 4-3,5 BD:+5V-LB Q SMKDS 1,5/ 4-3,5 BD:+5V-LB Q 1701116 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SMKDS 1,5/ 4-3,5 BD:+5V-LB Q 1701116 PHOENIX CONTACT PCB terminal block

SMKDS 1,5/ 4-3,5 BD:+5V-LB Q

1701116

PHOENIX CONTACT

50 Pcs.

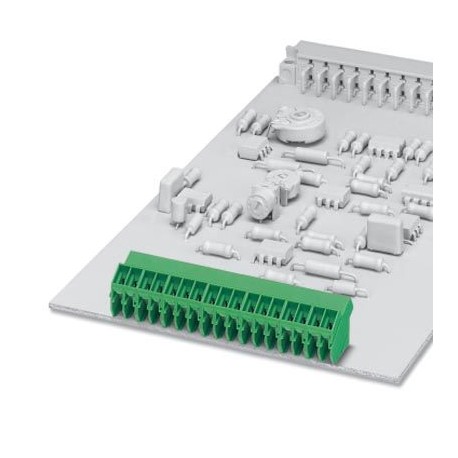

PCB terminal block Terminal block for printed circuit board, nominal current: 12 A, dimensioning voltage (III/2): 160 V, nominal cross-section: 1.5 mm², number of potentials: 4, number of rows: 1, number of poles per row: 4, article family: SMKDS 1.5, pitch: 3.5mm, connection type: Screw connection with traction capsule, screw clamping method: L Longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 35 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1701116
Packing unit1
GTIN4046356515825
Custom tariff number85369010

Dimensions

Length [ l ]13.7 mm
Pitch3.5 mm
Dimension a10.5 mm
Width [ w ]14 mm
Height12 mm
Height [ h ]15.5 mm
Solder pin [P]3.5 mm
Pin spacing3.5 mm
Hole diameter1.3 mm

General

Range of articlesSMKDS 1,5
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Nominal cross section1.5 mm²
Solder pin surface
Internal cylindrical gageA1
Stripping length7 mm
Number of positions4
Screw threadM2
Tightening torque, min0.22 Nm
Tightening torque max0.25 Nm

Connection data

Conductor cross section AWG min.28
Conductor cross section AWG max.16
2 conductors with same cross section, solid min.0.08 mm²
2 conductors with same cross section, solid max.0.5 mm²
2 conductors with same cross section, stranded min.0.08 mm²
2 conductors with same cross section, stranded max.0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.0.34 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
