View larger
Images are for illustrative purposes only. Please refer to data sheet for details

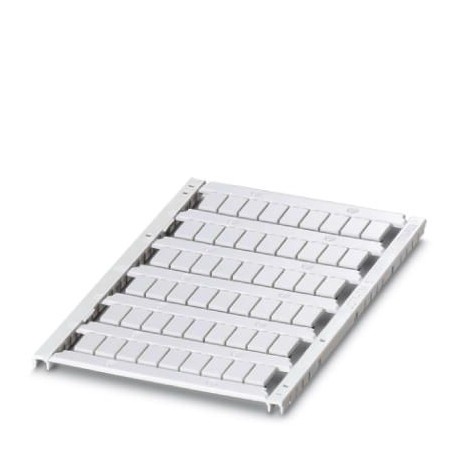

UCT5-TM 6 0828752 PHOENIX CONTACT Marker for terminal blocks
UCT5-TM 6
0828752
PHOENIX CONTACT
10 Pcs.
Marker for terminal blocks
UniCard materials for thermal transfer printer, for labeling Cabur terminals, 54 units, labelable with THERMOMARK CARD and BLUEMARK LED, color: white
Automation > Labelling for terminal block
MS Material
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0828752 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 172 (C-3-2017) |
| GTIN | 4046356544917 |
| Weight per Piece (excluding packing) | 12.700 g |
| Custom tariff number | 39269097 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 120 °C |
|---|---|
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
General
| Note | Can be labeled via thermal transfer |
|---|---|
| Color | white |
| Type | high |
| Components | free from silicone and halogen |
| Flammability rating according to UL 94 | V0 |
| Material | PC |
| PC | |
| RoHS compliant | Yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 54 |
| Number of individual labels per row | 9 |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Marking mounting type | snap into tall marker groove |
| Result | Test passed |
| Oxygen index (DIN EN ISO 4589-2) | 32.4 % |
| R22 | HL 1 - HL 3 |
| R23 | HL 1 - HL 3 |
| R24 | HL 1 - HL 3 |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Environmental Product Compliance
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
|---|
