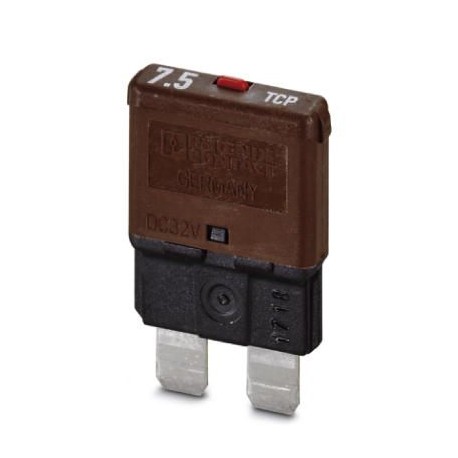

PHOENIX CONTACT TCP 7,5/DC32V TCP 7,5/DC32V 0700007 PHOENIX CONTACT Thermal device circuit breaker

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

TCP 7,5/DC32V 0700007 PHOENIX CONTACT Thermal device circuit breaker

Name: TCP 7,5/DC32V 0700007 PHOENIX CONTACT Thermal device circuit breaker
Brand: PHOENIX CONTACT
SKU: 0700007

Reference: TCP 7,5/DC32V

Code: 0700007

Manufacturer: PHOENIX CONTACT

Units per package: 1 Pcs.

Description:

Thermal device circuit breaker Thermal appliance protection switches, number of poles: 1, rated current: 7.5 A, rated voltage: 32 V, fuse type: Slow, fuse type: Automatic fuse, mounting class: on base element

Categories:
Automation > Fuse terminal block
Over Current Protection

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Key Commercial Data

Orderkey	0700007
Packing unit	50 pc
Note	Made to Order (non-returnable)
Catalog page	Page 334 (C-4-2017)
GTIN	4046356079631
Weight per Piece (excluding packing)	4.040 g
Custom tariff number	85362010
Country of origin	DE (Germany)

General

Mounting type	on base element
Color	brown
Number of positions	1
Insulating material	PA

Electrical data

Fuse	Slow-blow
Fuse type	Automatic device
Rated voltage	32 V DC
Rated current I_N	7.5 A
Rated short-circuit switching capacity I_cn	150 A (≥ 3 switch-offs)
	2000 A (≥ 1 switch-off)
	≤ 50 A (300 switch-offs)
