View larger
Images are for illustrative purposes only. Please refer to data sheet for details

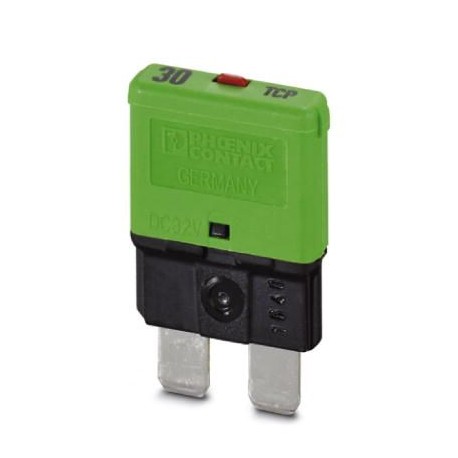

TCP 30/DC32V 0700030 PHOENIX CONTACT Thermal device circuit breaker
TCP 30/DC32V
0700030
PHOENIX CONTACT
1 Pcs.
Thermal device circuit breaker
Thermal appliance protection switches, number of poles: 1, rated current: 30 A, rated voltage: 32 V, fuse type: Slow, fuse type: Automatic fuse, mounting class: on base element
Automation > Fuse terminal block
Over Current Protection
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0700030 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 334 (C-4-2017) |
| GTIN | 4046356079884 |
| Weight per Piece (excluding packing) | 4.100 g |
| Custom tariff number | 85362010 |
| Country of origin | DE (Germany) |
Electrical data
| Fuse | Slow-blow |
|---|---|
| Fuse type | Automatic device |
| Rated voltage | 32 V DC |
| Rated current IN | 30 A |
| Rated short-circuit switching capacity Icn | 150 A (≥ 3 switch-offs) |
| 2000 A (≥ 1 switch-off) | |
| ≤ 50 A (300 switch-offs) |
Ambient conditions
| Degree of protection | IP30 (Actuation area) |
|---|---|
| Ambient temperature (operation) | -40 °C ... 85 °C |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| No hazardous substances above threshold values |
