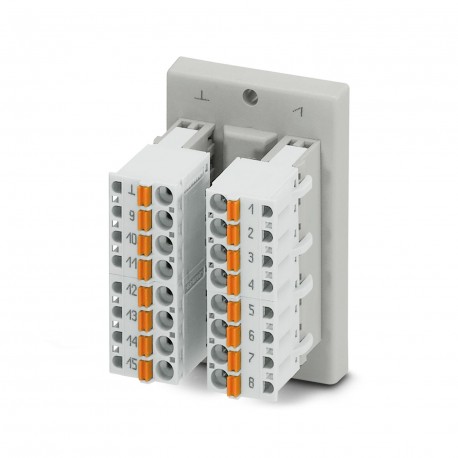

PHOENIX CONTACT DFLK-D15 SUB/F/FKCT DFLK-D15 SUB/F/FKCT 2903065 PHOENIX CONTACT Interface module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DFLK-D15 SUB/F/FKCT 2903065 PHOENIX CONTACT Interface module

DFLK-D15 SUB/F/FKCT

2903065

PHOENIX CONTACT

1 Pcs.

Interface module The VARIOFACE feed-through module makes a 1:1 connection between plug-in push-in spring connection terminals and a subminiature D-connection socket (no. 15 poles). A separate mass shunt is available. The VARIOFACE bulkhead module makes a 1:1 connection between extendable push-in spring-loaded terminals and a D-SUB socket (no. 15 poles). A separate ground connection is available.

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2903065
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 590 (C-7-2015)
GTIN4046356709453
Weight per Piece (excluding packing)77.660 g
Custom tariff number85366990
Country of originDE (Germany)

Dimensions

Width36.5 mm
Height58.4 mm
Depth46 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage25 V AC
60 V DC
Max. perm. current (per branch)2.5 A
Max. permissible current (all branches)37.5 A
Number of positions15
Mounting positionany
Assembly instructionsIn rows with zero spacing
Degree of protectionIP20

Connection data for connection 1

Connection nameField level
Connection methodPlug-in push-in spring-cage connection
Stripping length10 mm
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data for connection 2

Connection nameController level
Connection methodD-SUB socket strip
Number of positions15

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsDIN EN 50178
IEC 60664
Rated insulation voltage125 V
Rated surge voltage1.2 kV (Functional insulation)
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2903065 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Spring clamp connection
Type of electrical connection, control sided (EF008549) D-Sub
Number of poles (EF001391) 15
Rated voltage (EF000228) 30 V
Rated current (EF000227) 2.5 A
Depth (EF000049) 46 mm
Width (EF000008) 38 mm
Height (EF000040) 58.4 mm
Mounting method (EF000003) Other
