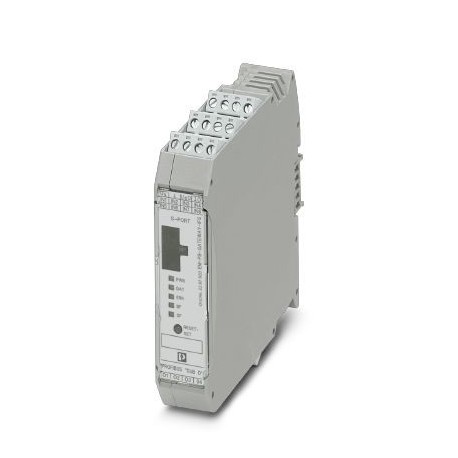

EM-PB-GATEWAY-IFS 2297620 PHOENIX CONTACT Data interface

EM-PB-GATEWAY-IFS

2297620

PHOENIX CONTACT

1 Pcs.

Data interface Link gateway for the connection of up to 32 INTERFACE system participants via PROFIBUS DP to a higher-order control system. The INTERFACE system participants are connected via rail bus connectors to the link gateway, the rail bus connector is attached.

Automation > Fieldbus, decentr. periphery - communication module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2297620
Packing unit1 pc
Catalog pagePage 16 (C-5-2017)
GTIN4046356319652
Weight per Piece (excluding packing)149.610 g
Custom tariff number85389091
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Width22.5 mm
Height99 mm
Depth114.5 mm
Ambient temperature (operation)-35 °C ... 50 °C
Ambient temperature (storage/transport)-35 °C ... 80 °C
Degree of protectionIP20

Device supply

Rated control circuit supply voltage US24 V DC -20 % ... +25 %
Rated control supply current IS85 mA (plus load current of the outputs)
Protective circuitReverse polarity protection
Surge protection

Digital inputs

Number8
Rated actuating voltage UC24 V DC ±20 %
Rated actuating current IC3 mA
Protective circuitReverse polarity protection

Digital outputs

DesignationSwitching outputs
Number4
Note on protection circuitFusing with max. 8 A F-fuse
Residual voltage1 V
Maximum switching voltage23 V DC (UB- Uresid.of the output)
Max. switching current500 mA
Protective circuitParallel protection against polarity reversal, pay attention to the fuse

General

Operating mode100% operating factor
Degree of protectionIP20
Standards/regulationsEN 50178
Degree of pollution2
Overvoltage categoryIII
Mounting positionany
Assembly instructionsIn rows with zero spacing
Mounting typeDIN rail mounting
Housing materialPolyamide PA non-reinforced
Colorgray

Serial interface

Interface 1Interface-System
Serial transmission speed76.8 kbps
Connection methodDIN rail bus connectors
Interface 2PROFIBUS DP
Serial transmission speed12 Mbps
Connection methodD-SUB-9

Connection nameSupply
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 2 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG12 ... 24
Connection nameProgramming connection
Connection methodS-PORT (socket)
Number of connections1
Number of positions12
Connection nameINTERFACE system
Connection methodDIN rail bus connectors
Number of connections1
Number of positions5
Connection namePROFIBUS DP
Connection methodD-SUB
Number of connections1
Number of positions9

Standards and Regulations

Standards/regulationsEN 50178
Degree of pollution2
Overvoltage categoryIII

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2297620 PLC's (EC001604)
Feature Name Feature Value
Supply voltage DC (EF007534) 19.2 V
Voltage type (supply voltage) (EF002991) DC
Supporting protocol for EtherCAT (EF017564) No
Supporting protocol for EtherNet/IP (EF007521) No
Radio standard Bluetooth (EF007178) No
Radio standard WLAN 802.11 (EF007179) No
Radio standard GPRS (EF008523) No
IO link master (EF007298) No
System accessory (EF004118) Yes
Degree of protection (IP) (EF005474) IP20
With potential separation (EF003272) No
Fieldbus connection over separate bus coupler possible (EF004002) Yes
Suitable for rail mounting (EF003972) Yes
Wall mounting/direct mounting (EF007020) No
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
Suitable for safety functions (EF001597) No
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 22.65 mm
Height (EF000040) 107.860794 mm
Depth (EF000049) 113.801091 mm
