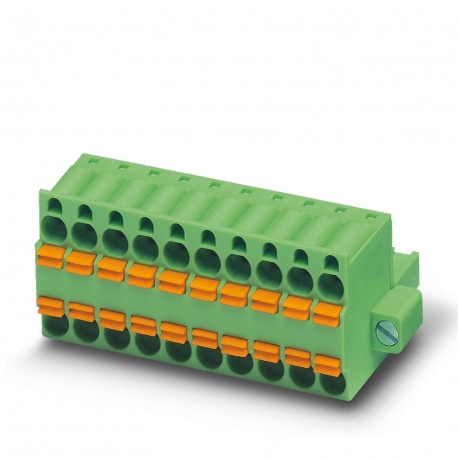

PHOENIX CONTACT TFKC 2,5/ 8-STF-5,08BKAU2BDX43 TFKC 2,5/ 8-STF-5,08BKAU2BDX43 1012510 PHOENIX CONTACT Connector for printed circuit board, number of poles:.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TFKC 2,5/ 8-STF-5,08BKAU2BDX43 1012510 PHOENIX CONTACT Connector for printed circuit board, number of poles:..

TFKC 2,5/ 8-STF-5,08BKAU2BDX43

1012510

PHOENIX CONTACT

50 Pcs.

Connector for printed circuit board, number of poles: 8, pitch: 5,08 mm, connection type: spring clamp push-in, color: black, surface contacts: Gold Connector for printed circuit board, nominal section: 2.5 mm², color: black, rated current: 12 A, sizing voltage (III/2): 320 V, surface contacts: Gold, contact type: Connection female, Number of potentials: 8, Number of rows: 1, Number of poles per row: 8, number of connections: 16, article family: TFKC 2.5/.. -STF, pitch: 5.08 mm, connection type: Push-in spring connection, connection direction conductor/printed circuit board: 0 °, Clamping hook: - Clamping hook, plug-in system: CLASSIC COMBICON, Locking: Locking by screw, Mounting: Aerial fastening (screw), type of packaging: boxed packaging: Printed circuit board connector, nominal section: 2.5 mm2, color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Au, contact connection type: Female, number of potentials: 8, number of rows: 1, number of poles: 8, number of connections: 16, article family: TFKC 2.5/.. -STF, pitch: 5.08 mm, connection type: Push-in spring connection, conductor/printed circuit board connection direction: 0°, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: Screw locking, fixing type: Air clamping (screw), packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Connector for printed circuit board, nominal current: 12 A, voltage and sizing (III/2): 320 V, number of poles: 8, pitch: 5,08 mm, connection type: spring clamp push-in, color: black, surface contacts: Tin

Data commercial

Key orderOne million twelve thousand five hundred ten
Packing unit50 pcs
Key sellingAAAFAB -
Minimum order quantity50 pcs
EANFour trillion fifty five billion six hundred twenty six million four hundred eighty nine thousand one hundred eighty six
Unit weight (excluding packaging)18,755 g
Tariff number tariffEighty five million three hundred sixty six thousand nine hundred ninety

Dimensions

Length [ l ]25,7 mm
Width [ w ]50,44 mm
Height [ h ]22,1 mm
Step5,08 mm
Average35,56 mm

Overview

Family of articlesTFKC 2,5/..-STF
Number of polesEight
Type of connectionConnection by spring loaded push-in
Nominal cross section2.5 mm2

Environmental Product Compliance

China RoHSSpace of time for the intended use: unlimited = FEUP-e
No dangerous substances above the thresholds

Ratings

eCl@ss

eCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 7.0Twenty seven million four hundred forty thousand three hundred nine
eCl@ss 8.0Twenty seven million four hundred forty thousand three hundred nine
eCl@ss 9.0Twenty seven million four hundred forty thousand three hundred nine

ETIM

ETIM 5.0EC002638
ETIM 6.0EC002638
ETIM 7.0EC002638
