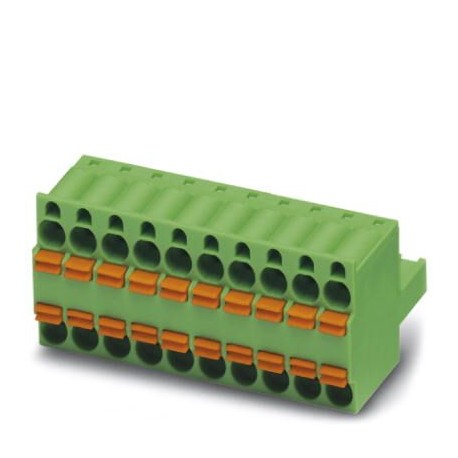

PHOENIX CONTACT TFKC 2,5/ 4-ST-5,08BD:B1+,A1+Q TFKC 2,5/ 4-ST-5,08BD:B1+,A1+Q 1002291 PHOENIX CONTACT Connector for printed circuit board, number of poles:.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TFKC 2,5/ 4-ST-5,08BD:B1+,A1+Q 1002291 PHOENIX CONTACT Connector for printed circuit board, number of poles:..

TFKC 2,5/ 4-ST-5,08BD:B1+,A1+Q

1002291

PHOENIX CONTACT

50 Pcs.

Connector for printed circuit board, number of poles: 4, pitch: 5,08 mm, connection type: spring clamp push-in, color: green, surface contacts: Tin Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 8, family of articles: TFKC 2.5/.. -ST, pitch: 5.08 mm, connection type: Push-in spring connection, conductor connection/printed circuit board connection direction: 0 °, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: without, fixing type: without, packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB connector, Rated current: 12 A, Rated voltage (III/2): 320 V, Number of poles: 4, Pitch: 5.08 mm, Connection type: Push-in spring connection, Color: Green, Contact surface: Tin

Commercial data

Order key1002291
Packaging unit50 PCS
Sales keyE1 - PCB Connector
Minimum Order Quantity50 PCS
NoteMade-to-order production (no returns)
GTIN4055626468969
Weight per piece (excluding packaging)9.032 g
Weight per piece (including packaging)9.032 g
Customs tariff number85366990
Country of originBG (Bulgaria)

Dimensions

Length [ l ]25.7 mm
Width [ w ]20.22 mm
Height [ h ]22.1 mm
Grid dimension5.08 mm
Measure a15.24 mm

General

Article familyTFKC 2.5/.. -ST
Number of poles4
Connection typePush-in spring connection
Nominal cross-section2.5 mm²

Environmental Product Compliance

China RoHSPeriod of intended use: unlimited = EFUP-e
No hazardous substances above the limit values

Classifications

eCl@ss

eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440309
eCl@ss 8.027440309
eCl@ss 9.027440309

ETIM

ETIM 5.0EC002638
ETIM 6.0EC002638
ETIM 7.0EC002638

ETIM for 1002291 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 8
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
