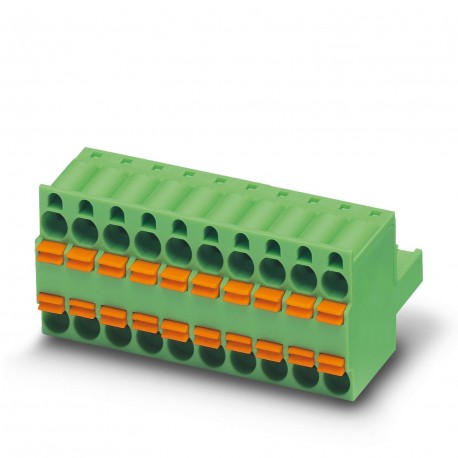

PHOENIX CONTACT TFKC 2,5/ 3-ST-5,08BKBDWH-A1/+ TFKC 2,5/ 3-ST-5,08BKBDWH-A1/+ 1096167 PHOENIX CONTACT Connector for printed circuit board, nominal current:.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TFKC 2,5/ 3-ST-5,08BKBDWH-A1/+ 1096167 PHOENIX CONTACT Connector for printed circuit board, nominal current:..

TFKC 2,5/ 3-ST-5,08BKBDWH-A1/+

1096167

PHOENIX CONTACT

1000 Pcs.

Connector for printed circuit board, nominal current: 12 A, number of poles: 3, pitch: 5,08 mm, connection type: spring clamp push-in, color: black, surface contacts: Tin Connector for printed circuit board, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of rows: 1, number of poles: 3, family of articles: TFKC 2.5/.. -ST, pitch: 5.08 mm, connection type: Push-in spring connection, conductor connection/printed circuit board connection direction: 0 °, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: without, fixing type: without, packaging type: boxed PCB connector, nominal cross-section: 2.5 mm2, colour: black, rated current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Sn, contact connection type: Female, number of rows: 1, number of poles: 3, product series: TFKC 2.5/.. -ST, pitch: 5.08 mm, connection type: Push-in spring connection, conductor/board connection direction: 0 °, locking hook: - Locking hook, plug system: COMBICON MSTB 2.5, locking: none, fixing type: none, packaging type: packed in carton

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Article features
Product TypePrinted circuit board connector
Product FamilyTFKC 2.5/.. -ST
Product LineCOMBICON Connectors M
Number of poles3
Step5.08 mm
Number of rows1
Data maintenance status
Article review00
Electrical characteristics
Rated Current IN12 A
Rated voltage UN320 V
Mass Resistivity2 mΩ
Sizing voltage (III/3)320 V
Sizing impulse voltage (III/3)4 kV
Sizing voltage (III/2)320 V
Sizing Impulse Voltage (III/2)4 kV
Sizing voltage (II/2)630 V
Sizing Impulse Voltage (II/2)4 kV
I2 / I3 conductor connection
Permissible current load24 A
Plug-in contact I1
Permissible current load12 A
Connection data
Connection technology
typeBus plugs
Connector systemCOMBICON MSTB 2.5
Nominal cross-section2.5 mm²
Contact Connection Typefemale
Blockage
Clamping Typeabsent
Fixing flangeabsent
Conductor connection
LinkPush-in spring connection
Conductor/board connection direction0 °
Rigid conductor cross-section0.2 mm² ... 2.5 mm²
Flexible conductor cross-section0.2 mm² ... 2.5 mm²
Conductor cross-section AWG24 ... 12
Flexible conductor cross-section with cable lug without plastic collar0.25 mm² ... 2.5 mm²
Flexible conductor cross-section with mounted lug and plastic collar0.25 mm² ... 2.5 mm²
2 conductors of identical cross-section flexible with TWIN ferrule with plastic collar0.5 mm² ... 1.5 mm²
Buffer Gauge a x b / diameter2.8 mm x 2.0 mm / 2.0 mm
Length of the section to be stripped10 mm
Indications for ferrules without isolation collar
Recommended crimping tool1212034 CRIMPFOX 6
Indications for ferrules with isolation collar
Recommended crimping tool1212034 CRIMPFOX 6
Material information
Material information - contacts
noteComplies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201
Contact MaterialCu Alloy
Surface FinishHot-dip galvanizing
Metal Surface, Connection Point (Surface Layer)Tin (4 - 8 μm Sn)
Metal surface contact zone (surface layer)Tin (4 - 8 μm Sn)
Material information - case
Color (Case)Black (9005)
Insulation materialPA
Insulation Material GroupThe
CTI according to IEC 60112600
Combustibility class according to UL 94V0
Flammability index of GWFI filament according to EN 60695-2-12850
GWIT filament ignition temperature according to EN 60695-2-13775
Brinell hardness test temperature according to EN 60695-10-2125 °C
Material data - drive element
Colour (Drive Element)Orange (2003)
Insulation materialPBT
Insulation Material GroupIIIa
CTI according to IEC 60112275
Combustibility class according to UL 94V0
dimensions
Dimensioned Drawingedyvovzxrs.jpg
Step5.08 mm
Width [w]15.14 mm
Height [h]22.1 mm
Length [l]25.7 mm
Notes
Note for OperationAccording to DIN EN 61984, COMBICON connectors are connectors without switchable power (COC). For use in accordance with the intended use, they must not be switched on or disconnected while they are still live or under load.
Mechanical Controls
Conductor connection
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultTest passed
Conductor Integrity and Stability Test
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultTest passed
Repeated connection and disconnection
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultTest passed
Tensile test
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Conductor cross-section/conductor type/tensile force nominal value/actual value0.2 mm² / rigid / > 10 N
0.2 mm² / flexible / > 10 N
2.5 mm² / rigid / > 50 N
2.5 mm² / flexible / > 50 N
Insertion/tensile force
Test SpecificationDIN EN 60512-13-2:2006-11
ResultTest passed
Number of cycles25
Insertion force per pole approx.10 N
Tensile force per pole approx.9.5 N
Resistance of lettering
Test SpecificationDIN EN 60068-2-70:1996-07
ResultTest passed
Polarization and encoding
Test SpecificationDIN EN 60512-13-5:2006-11
ResultTest passed
Visual inspection
Test SpecificationDIN EN 60512-1-1:2003-01
ResultTest passed
Dimensional control
Test SpecificationDIN EN 60512-1-2:2003-01
ResultTest passed
Environmental and electrical life conditions
Vibration test
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
Frequency10 - 150 - 10 Hz
Sweep Speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axle2.5 h
Test DirectionsX, Y, and Z axis
Electrical life control
Test SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Vertical impulse tension above sea level4.8 kV
Mass Resistivity R12 mΩ
Mass Resistivity R22.2 mΩ
Manoeuvring cycles25
Climate control
Test SpecificationDIN EN ISO 6988:1997-03
Stress due to corrosion0.2 dm3KNOW2on 300 dm3/40 °C/1 cycle
Stress due to the effect of heat100 °C/168 h
Fixed AC voltage2.21 kV
Environmental conditions
Ambient temperature (operating)-40 °C ... 100 °C (depending on derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (transport and storage)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
Electrical Controls
Thermal Test Control Group C
Test SpecificationDIN EN 60512-5-1:2003-01
Number of poles tested10
Insulation Resistance
Test SpecificationDIN EN 60512-3-1:2003-01
Insulation Resistance Between Contiguous Poles1012Ω
Temperature Cycling
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultTest passed
Creepage and Creepage Distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulation Material GroupThe
Resistance to surface currents (DIN EN 60112 (VDE 0303-11))CTI 600
Rated insulation voltage (III/3)320 V
Rated impulse voltage (III/3)4 kV
Minimum clearance value - inhomogeneous range (III/3)3 mm
Minimum creepage value (III/3)4 mm
Rated Isolation Voltage (III/2)320 V
Rated impulse voltage (III/2)4 kV
Minimum creepage value - inhomogeneous range (III/2)3 mm
Minimum creepage value (III/2)3 mm
Rated Isolation Voltage (II/2)630 V
Rated Impulse Voltage (II/2)4 kV
Minimum creepage value - inhomogeneous range (II/2)3 mm
Minimum creepage value (II/2)3.2 mm
Packaging Information
PackagingPacked in carton

ETIM for 1096167 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
