View larger
Images are for illustrative purposes only. Please refer to data sheet for details

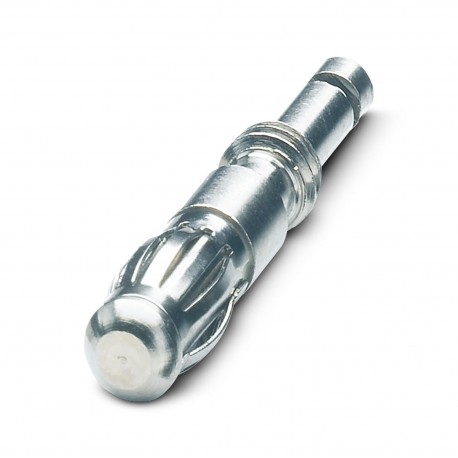

MPS-MT/ 4MM 3048577 PHOENIX CONTACT Test plugs
MPS-MT/ 4MM
3048577
PHOENIX CONTACT
10 Pcs.
Test plugs
Test plug, with solder connection up to 1 mm² cable cross-section, number of poles: 1, colour: silver
Test plug, with solder connection up to 1 mm2 conductor cross section, number of positions: 1, color: silver
Automation > Test plug for terminal blocks
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Test plug terminal block |
| Number of positions | 1 |
| Data management status | |
| Article revision | 02 |
Electrical properties
| Nominal voltage UN | 60 V DC (30 V AC) |
| Nominal current IN | 16 A |
Connection data
| Connection method | Solder connection |
Dimensions
| Height | 26 mm |
| Length contact range | 8.4 mm |
| Pin diameter | 4.4 mm |
| Note on dimensions | Length without insulating sleeve |
Material specifications
| Color | silver-colored |
| Feature Name | Feature Value |
|---|---|
| Connectable (EF006169) | No |
