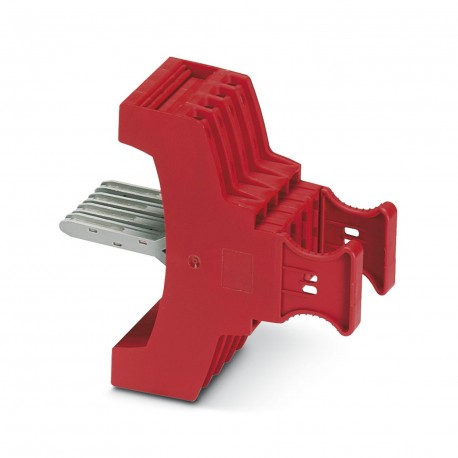

PHOENIX CONTACT FTP-2/4 SERVICE FTP-2/4 SERVICE 3069468 PHOENIX CONTACT Test plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FTP-2/4 SERVICE 3069468 PHOENIX CONTACT Test plug

FTP-2/4 SERVICE

3069468

PHOENIX CONTACT

1 Pcs.

Test plug Test connector, nominal voltage: 400 V, nominal current: 24 A, Dimensioning cross-section: 2.5 mm², colour: red Test plug, nom. voltage: 400 V, nominal current: 24 A, Rated cross section: 2.5 mm2, color: red

Automation > Test plug for terminal blocks
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeTest plug terminal block
Number of positions4
Pitch8.2 mm
Number of connections8
Number of rows1
Potentials4
Data management status
Article revision05
Insulation characteristics
Overvoltage categoryIII
Electrical properties
Rated surge voltage4 kV
Maximum power dissipation for nominal condition1.31 W
Test surge voltage5 kV
Connection data
Nominal cross section6 mm²
Test socket torque0.5
NoteThe conductor cross section depends on the cable lug used
Conductor cross section flexible0.5 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]20 ... 14 (converted acc. to IEC)
Nominal current24 A
Maximum load current24 A
Nominal voltage400 V AC/DC
Nominal cross section2.5 mm²
Dimensions
Width34.2 mm
Height86 mm
Pitch8.2 mm
Material specifications
Colorred (RAL 3001)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Mechanical properties
Mechanical data
Open side panelNo
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (storage/transport)30 % ... 70 %
Mounting
Mounting typeInsertion in base strip

ETIM for 3069468 Terminal blocks (EC002555)
Feature Name Feature Value
Rated voltage (EF000228) 400 V
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable (EF006169) No
Number of poles (EF001391) 4
Modular spacing (EF000394) 8.2 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
