View larger
Images are for illustrative purposes only. Please refer to data sheet for details

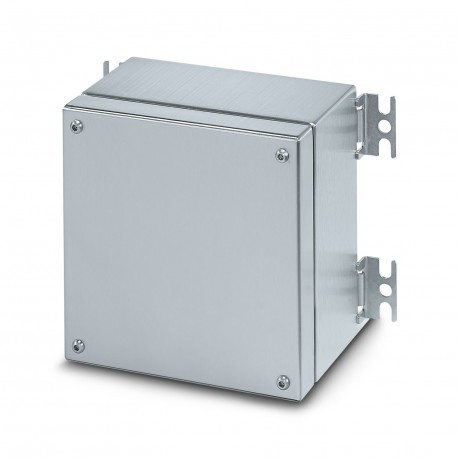

E S6 A 400X200X120 0899013 PHOENIX CONTACT Junction box
E S6 A 400X200X120
0899013
PHOENIX CONTACT
2 Pcs.
Junction box
Empty housing, material: 316L / 1.4404 sterling steel, surface resistance: brushed, silver, 400 mm x 200 mm x 120 mm, closure type: Screw cap, delivery volume - ATD: Mounting plate, Fixing square with mounting screws, M12 grounding bolt placed on the outside, Installation instructions, Mounting plate
Empty enclosure, material: Stainless steel, 316L/1.4404, surface resistance: brushed, silver, 400 mm x 200 mm x 120 mm, type of locking: Screw-on cover, scope of supply - ATD: Mounting panel, Fixing angle with mounting screws, M12 grounding bolts, affixed externally, Installation notes, Mounting panel
Automation > Enclosure/switchgear cabinet (empty)
Enclosures connectivity
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Terminal box |
| Scope of delivery | Mounting panel |
| Fixing angle with mounting screws | |
| M12 grounding bolts, affixed externally | |
| Installation notes | |
| Type | 20 |
| Data management status | |
| Article revision | 01 |
| Insulation characteristics | |
| Protection class | I |
Electrical properties
| Maximum power dissipation | 13.4 W (T6 up to 40 °C) |
| 8.3 W (T6 up to 55 °C) | |
| 5 W (T6 up to 65 °C) | |
| 18.4 W (T5 up to 40 °C) | |
| 13.4 W (T5 up to 55 °C) | |
| 10.1 W (T5 up to 65 °C) | |
| 21.8 W (T4 up to 40 °C) | |
| 10.5 W (T4 up to 55 °C) | |
| 13.4 W (T4 up to 65 °C) |
Dimensions
| Dimensional drawing |  |
| Width | 400 mm |
| Height | 200 mm |
| Depth | 120 mm |
| Clearance width, maximum DIN rail length | 344 mm |
| Max. material thickness | 1.5 mm |
Material specifications
| Color | silver |
| Material | Stainless steel, 316L/1.4404 |
| Seal material | Silicon |
| Surface characteristics | brushed |
| Note | 240 grain |
Mechanical properties
| General | |
| Type of locking (GRP) | Screw-on cover Allen screws |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -55 °C ... 135 °C |
Mounting
| Assembly note | External fixing clips |
