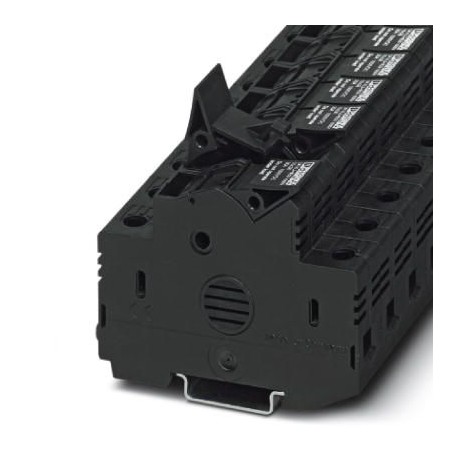

PHOENIX CONTACT UK 10,3 HESILED 1000V UK 10,3 HESILED 1000V 3211249 PHOENIX CONTACT Fuse modular terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UK 10,3 HESILED 1000V 3211249 PHOENIX CONTACT Fuse modular terminal block

UK 10,3 HESILED 1000V

3211249

PHOENIX CONTACT

12 Pcs.

Fuse modular terminal block Fuse holder, fuse type: Glass/ceramic/..., fuse type: gPV 10.3 x 38 mm according to 60269-6, nominal voltage: 1000 V, nominal current: 30 A, connection type: Screw connection, Sizing cross-section: 16 mm², cross-section: 0.75 mm²- 25 mm², mounting class: NS 35/7.5, NS 35/15, NS 32, color: black

Automation > Fuse terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3211249
Packing unit10 pc
Minimum order quantity10 pc
Catalog pagePage 464 (C-1-2017)
GTIN4046356482400
Weight per Piece (excluding packing)52.650 g
Custom tariff number85369095
Country of originDE (Germany)

General

Number of levels1
Number of connections2
Nominal cross section16 mm²
Colorblack
Insulating materialPA
Flammability rating according to UL 94V0
Maximum power dissipation for nominal condition2.43 W
Fuse10:3 x 38 mm
Fuse typeGlass / ceramics / ...
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryII
Insulating material groupIIIb
Connection in acc. with standardIEC 60269-1/-2
Maximum load current30 A (the current and voltage are determined by the fuse)
Nominal current IN30 A (the current and voltage are determined by the fuse)
Nominal voltage UN1000 V (the current and voltage are determined by the fuse)
Open side panelNo

Dimensions

Width18 mm
Length81 mm
Height NS 35/7,565.5 mm
Height NS 35/1573 mm

Connection data

Conductor cross section solid min.0.75 mm²
Conductor cross section solid max.25 mm²
Conductor cross section flexible min.0.75 mm²
Conductor cross section flexible max.25 mm²
Conductor cross section AWG min.16
Conductor cross section AWG max.3
Conductor cross section flexible, with ferrule without plastic sleeve min.0.75 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.16 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.75 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.16 mm²
Cross section with insertion bridge, solid max.10 mm²
Cross section with insertion bridge, stranded max.10 mm²
2 conductors with same cross section, solid min.0.75 mm²
2 conductors with same cross section, solid max.4 mm²
2 conductors with same cross section, stranded min.0.75 mm²
2 conductors with same cross section, stranded max.4 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.75 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.10 mm²
Cross section with insertion bridge, solid max.10 mm²
Cross section with insertion bridge, stranded max.10 mm²
Connection methodScrew connection
Stripping length12 mm
Internal cylindrical gageB6
Screw threadM5
Tightening torque, min2.5 Nm
Tightening torque max3 Nm

Standards and Regulations

Connection in acc. with standardIEC 60269-1/-2
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3211249 Terminal blocks (EC000899)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.75 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.75 mm²
Connectable conductor cross section solid-core (EF007337) 0.75 mm²
Connectable conductor cross section multi-wired (EF007343) 0.75 mm²
Rated current In (EF008250) 30 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of levels (EF002659) 1
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Inflammability class of insulation material according to UL94 (EF002521) V2
Width (EF000008) 17.8 mm
Height (EF000040) 86.3 mm
Depth (EF000049) 64.21056 mm
Closing plate required (EF002525) No
Colour (EF000007) Black
