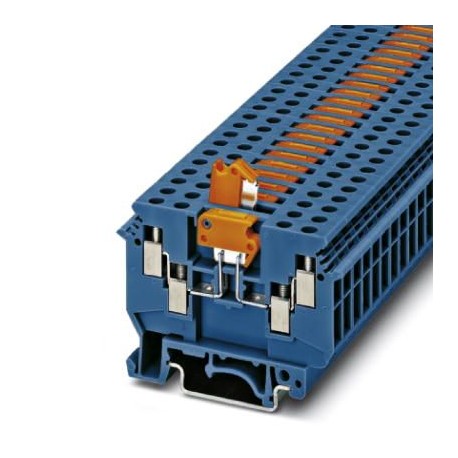

UDK 4-MTK-P/P BU 2775223 PHOENIX CONTACT Knife disconnect terminal block

UDK 4-MTK-P/P BU

2775223

PHOENIX CONTACT

50 Pcs.

Knife disconnect terminal block Blade interruptible terminal block, with threaded sockets for test sockets to accommodate test pins, nominal voltage: 630 V, nominal current: 16 A, 1st floor, connection type: Screw connection, Sizing cross-section: 4 mm², cross-section: 0.2 mm² - 6 mm², mounting: NS 35/7.5, NS 35/15, NS 32, color: blue

Automation > (Knife) disconnect terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2775223
Packing unit50 pc
Catalog pagePage 478 (C-1-2017)
GTIN4017918068523
Weight per Piece (excluding packing)16.490 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of levels1
Number of connections4
Nominal cross section4 mm²
Colorblue
Insulating materialPA
Flammability rating according to UL 94V2
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Connection in acc. with standardIEC 60947-7-1
Nominal current IN16 A (with 6 mm² conductor cross section)
Maximum load current16 A (in case of a 6 mm² conductor cross section, the maximum load current must not be exceeded by the total current of all connected conductors.)
Nominal voltage UN630 V
Open side panelYes

Dimensions

Width6.2 mm
Length63.5 mm
Height NS 35/7,547 mm
Height NS 35/1554.5 mm
Height NS 3252 mm

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.6 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.4 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1.5 mm²
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.1 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1 mm²
Cross section with insertion bridge, solid max.2.5 mm²
Cross section with insertion bridge, stranded max.2.5 mm²
Connection methodScrew connection
Stripping length8 mm
Internal cylindrical gageA4
Screw threadM3
Tightening torque, min0.6 Nm
Tightening torque max0.8 Nm

Standards and Regulations

Connection in acc. with standardCSA
IEC 60947-7-1
Flammability rating according to UL 94V2

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2775223 Terminal blocks (EC000902)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Rated current In (EF008250) 16 A
Rated voltage (EF000228) 630 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of clamp positions per level (EF002660) 4
Internally connected stages (EF002661) Yes
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V2
Width (EF000008) 6.2 mm
Height (EF000040) 63.5 mm
Depth (EF000049) 47 mm
Closing plate required (EF002525) Yes
Colour (EF000007) Blue
Type of cross disconnection (EF002546) None
With integrated test socket (EF002547) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
