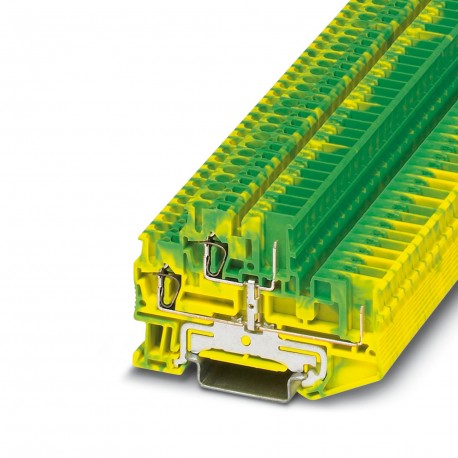

PHOENIX CONTACT STTB 2,5/2P-PE SO STTB 2,5/2P-PE SO 3040915 PHOENIX CONTACT Protective conductor double-level terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

STTB 2,5/2P-PE SO 3040915 PHOENIX CONTACT Protective conductor double-level terminal block

STTB 2,5/2P-PE SO

3040915

PHOENIX CONTACT

50 Pcs.

Protective conductor double-level terminal block Double-deck terminal block with protective conductor, connection type: Spring connection / plug-in connection, cross-section: 0.08 mm² - 4 mm², mounting class: NS 35/15, NS 35/7.5, color: green/yellow Protective conductor double-level terminal block, connection method: Spring-cage/plug-in connection, cross section: 0.08 mm2 - 4 mm2, mounting type: NS 35/15, NS 35/7,5, color: green/yellow

Automation > Ground terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeGround terminal block
Number of connections2
Number of rows2
Data management status
Article revision04
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage6 kV
Maximum power dissipation for nominal condition0 W
Connection data
Grounding footYes
Number of connections per level2
NotePlease observe the current carrying capacity of the DIN rails.
Stripping length8 mm ... 10 mm
Conductor cross section rigid0.08 mm² ... 4 mm²
Cross section AWG28 ... 12 (converted acc. to IEC)
Conductor cross section flexible0.08 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]28 ... 14 (converted acc. to IEC)
Flexible conductor cross section (ferrule with plastic sleeve)0.14 mm² ... 2.5 mm²
Dimensions
Width5.2 mm
End cover width2.2 mm
Height71.5 mm
Depth on NS 35/7,547.5 mm
Depth on NS 35/1555 mm
Material specifications
Colorgreen-yellow
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Mechanical properties
Mechanical data
Open side panelYes
Environmental and real-life conditions
Oscillation/broadband noise
SpecificationDIN EN 50155 (VDE 0115-200):2008-03
SpectrumService life test category 1, class B, body mounted
Frequencyf1= 5 Hz to f2= 150 Hz
ASD level0.964 (m/s²)²/Hz
Acceleration0.58g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed
Shocks
SpecificationDIN EN 50155 (VDE 0115-200):2008-03
Pulse shapeHalf-sine
Acceleration5g
Shock duration30 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed
Ambient conditions
Ambient temperature (operation)-60 °C (max. operating temperature see derating curve)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Mounting
Mounting typeNS 35/15
NS 35/7,5

ETIM for 3040915 Terminal blocks (EC000901)
Feature Name Feature Value
PEN function possible (EF002544) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.08 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.14 mm²
Connectable conductor cross section solid-core (EF007337) 0.08 mm²
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Number of clamp positions per level (EF002660) 2
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 5.2 mm
Height (EF000040) 71.5 mm
Depth (EF000049) 47.5 mm
Closing plate required (EF002525) Yes
Colour (EF000007) Green/yellow
