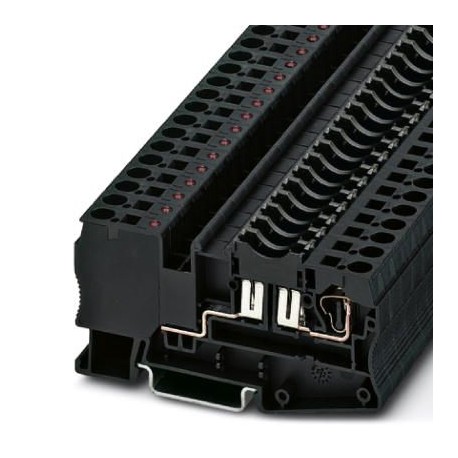

ST 4-FSI/C-LED 24 3036505 PHOENIX CONTACT Fuse modular terminal block

ST 4-FSI/C-LED 24

3036505

PHOENIX CONTACT

50 Pcs.

Fuse modular terminal block Fuse terminal block with light indication, for installation on NS 35, for circuit breakers, terminal width: 8.2 mm, color: Black

Automation > Fuse terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3036505
Packing unit50 pc
Catalog pagePage 177 (C-1-2017)
GTIN4017918890469
Weight per Piece (excluding packing)21.200 g
Custom tariff number85369095
Country of originTR (Turkey)

General

Number of levels1
Number of connections2
Mounting typeNS 35/7,5
Colorblack
Insulating materialPA
Flammability rating according to UL 94V0

Electrical data

FuseC
Fuse typeFlat
Degree of pollution3
Insulating material groupI
Connection in acc. with standardIEC 60947-7-3
Maximum current with single arrangement30 A
Voltage LED24 V DC
Current LED2 mA

Dimensions

Width8.2 mm
Height NS 35/7,543.5 mm
Height NS 35/1551 mm

Connection data

Conductor cross section solid min.0.08 mm²
Conductor cross section solid max.6 mm²
Conductor cross section flexible min.0.08 mm²
Conductor cross section flexible max.4 mm²
Conductor cross section AWG min.28
Conductor cross section AWG max.10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1 mm²
Connection methodSpring-cage connection
Internal cylindrical gageA4

Standards and Regulations

Connection in acc. with standardCSA
IEC 60947-7-3
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 3036505 Terminal blocks (EC000899)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.08 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.14 mm²
Connectable conductor cross section solid-core (EF007337) 0.08 mm²
Rated current In (EF008250) 30 A
Rated voltage (EF000228) 24 V
Type of electrical connection 1 (EF002526) Spring clamp connection
Type of electrical connection 2 (EF002527) Clip connection
Number of levels (EF002659) 1
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 8.15 mm
Height (EF000040) 86.5 mm
Depth (EF000049) 44.05 mm
Closing plate required (EF002525) No
Colour (EF000007) Black
