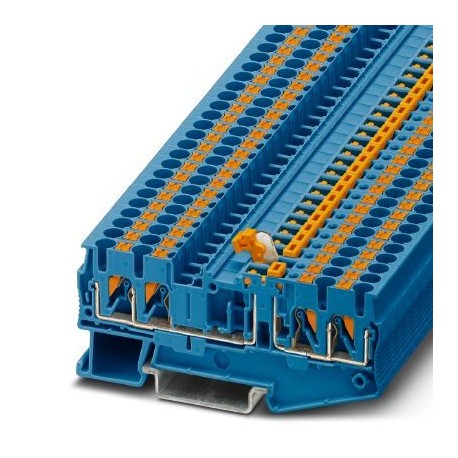

PT 2,5-QUATTRO-MT BU 3211676 PHOENIX CONTACT Knife disconnect terminal block

PT 2,5-QUATTRO-MT BU

3211676

PHOENIX CONTACT

50 Pcs.

Knife disconnect terminal block Blade interruptible terminal block, nominal voltage: 400 V, nominal current: 20 A, connection type: Push-in connection, Dimensioning cross-section: 2.5 mm², cross-section: 0.14 mm² - 4 mm², mounting: NS 35/7.5, NS 35/15, colour: blue

Automation > (Knife) disconnect terminal block
Modular TBs
