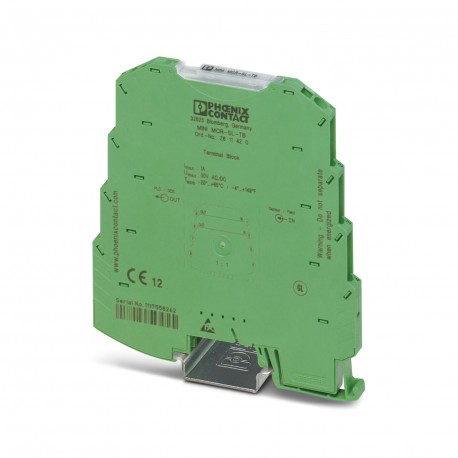

PHOENIX CONTACT MINI MCR-SL-TB MINI MCR-SL-TB 2811420 PHOENIX CONTACT Feed-through terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MINI MCR-SL-TB 2811420 PHOENIX CONTACT Feed-through terminal block

MINI MCR-SL-TB

2811420

PHOENIX CONTACT

1 Pcs.

Feed-through terminal block Feed-through terminal block for galvanically separated signal transmission Feed-through terminal block for transmission of signals that are already electrically isolated

Automation > Accessories/spare parts for low-voltage switch technology
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeFeed-through terminal block
Product familyMINI Analog
No. of channels1
Data management status
Article revision08
Electrical properties
Current carrying capacity1 A
Contact resistance< 10 mΩ
Input data
Signal: Voltage/current
Max. voltage input signal30 V AC/DC
Max. current input signal1 A
Connection data
Connection methodScrew connection
Stripping length12 mm
Screw threadM3
Number of connections1
Conductor cross section rigid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Dimensions
Dimensional drawingsmswzljhgb.jpg
Width6.2 mm
Height93.1 mm
Depth101.2 mm
Material specifications
Colorgreen (RAL 6021)
Housing materialPBT
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 2
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-20 °C ... 65 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Altitude≤ 2000 m
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Approvals
CE
CertificateCE-compliant
UKCA
CertificateUKCA-compliant
Shipbuilding approval
CertificateDNV GL TAA000020N
DNV GL data
TemperatureB
HumidityB
VibrationB
EMCA
EnclosureRequired protection according to the Rules shall be provided upon installation on board
EMC data
Electromagnetic compatibilityConformance with EMC directive
Noise immunityEN 61000-6-2
NoteWhen being exposed to interference, there may be minimal deviations.
Noise emissionEN 61000-6-4
Electrostatic discharge
Standards/regulationsEN 61000-4-2
Electrostatic discharge
CommentsSafety measures must be taken to prevent electrostatic discharge.
Electromagnetic HF field
DesignationElectromagnetic RF field
Standards/regulationsEN 61000-4-3
Evaluation criterionA
Fast transients (burst)
DesignationFast transients (burst)
Standards/regulationsEN 61000-4-4
Evaluation criterionB
Surge current load (surge)
Standards/regulationsEN 61000-4-5
Surge current load (surge)
CommentsCriterion B
Conducted interference
DesignationConducted interferences
Standards/regulationsEN 61000-4-6
Evaluation criterionA
Mounting
Mounting typeNS 35/7,5
NS 35/15
NS 35/15-2,3
DIN rail mounting
Assembly noteThe DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting positionany

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
