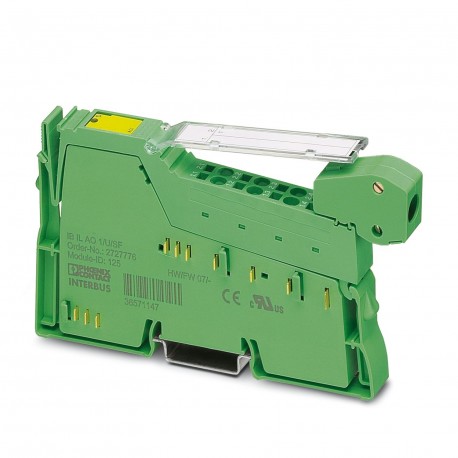

PHOENIX CONTACT IB IL AO 1/U/SF-PAC IB IL AO 1/U/SF-PAC 2861399 PHOENIX CONTACT Inline terminal View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IB IL AO 1/U/SF-PAC 2861399 PHOENIX CONTACT Inline terminal

IB IL AO 1/U/SF-PAC

2861399

PHOENIX CONTACT

1 Pcs.

Inline terminal Inline, Analog output terminal, Analog output: 1, 0 V ... 10 V, connection technology: 2 conductors, transmission rate on the local bus: 500 kBit/s, protection rating: IP20, including inline connector and marking surface Inline, Analog output terminal, Analog output: 1, 0 V ... 10 V, connection technology: 2-conductor, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connector and labeling field

Automation > Fieldbus, decentr. periphery - analogue I/O module
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Dimensions
Dimensional drawingnmwuvoqfyi.jpg
Width12.2 mm
Height135 mm
Depth71.5 mm
Notes
Note on application
Note on applicationOnly for industrial use
Utilization restriction
CCCex noteUse in potentially explosive areas is not permitted in China.
Interfaces
Inline local bus
Number of interfaces2
Connection methodInline data jumper
Transmission speed500 kbps
Transmission physicsCopper
System properties
Module
ID code (dec.)125
ID code (hex)7D
Length code (hex)01
Length code (dec)01
Process data channel16 bit
Input address area0 Byte
Output address area2 Byte
Register length16 bit
Required parameter data4 Byte
Required configuration data4 Byte
Output data
Analog:
Output nameAnalog output
Connection technology2-conductor
Note regarding the connection technologyshielded
Number of outputs1
D/A converter resolution16 bit
Protective circuitTransient protection of outputs
Representation of output values16 bits (15 bits + sign)
DAC resolution16 bit
Process data update< 1 ms
Voltage output signal0 V ... 10 V
Load/output load voltage output> 2 kΩ 0.05 %
Product properties
Product typeI/O component
Product familyInline
Typemodular
Scope of deliveryincluding Inline connector and labeling field
Data management status
Article revision10
Insulation characteristics
Overvoltage categoryII (IEC 60664-1, EN 60664-1)
Pollution degree2 (IEC 60664-1, EN 60664-1)
Electrical properties
Maximum power dissipation for nominal condition0.8 W
Potentials: Communications power (UL)
Supply voltage7.5 V DC (via voltage jumper)
Current drawmax. 40 mA
typ. 30 mA
Potentials: Supply of analog modules (UANA)
Supply voltage24 V DC (via voltage jumper)
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current drawmax. 20 mA
typ. 15 mA
Electrical isolation/isolation of the voltage ranges
Test voltage: 7.5 V supply (bus logic), 24 V supply UANA/ I/O500 V AC, 50 Hz, 1 min.
Test voltage: 7.5 V supply (bus logic), 24 V supply UANA/ functional ground500 V AC, 50 Hz, 1 min.
Test voltage: 24 V supply (I/O) / functional ground500 V AC, 50 Hz, 1 min.
Connection data
Connection technology
Connection nameInline connector
Conductor connection
Connection methodSpring-cage connection
Conductor cross section rigid0.08 mm² ... 1.5 mm²
Conductor cross section flexible0.08 mm² ... 1.5 mm²
Conductor cross section AWG28 ... 16
Stripping length8 mm
Inline connector
Connection methodSpring-cage connection
Conductor cross section, rigid0.08 mm² ... 1.5 mm²
Conductor cross section, flexible0.08 mm² ... 1.5 mm²
Conductor cross section AWG28 ... 16
Stripping length8 mm
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-25 °C ... 55 °C
Degree of protectionIP20
Air pressure (operation)70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)10 % ... 95 % (non-condensing)
Standards and regulations
Protection classIII (IEC 61140, EN 61140, VDE 0140-1)
Mounting
Mounting typeDIN rail mounting
